Raven RP70 Automatic Door Bottom Seals 920mm Silver Anodised A70C36

Raven RP70 Automatic Door Bottom Seals
A70C36

Door Bottom Seal - used to close gaps between the bottom edge of a door and the floor. Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

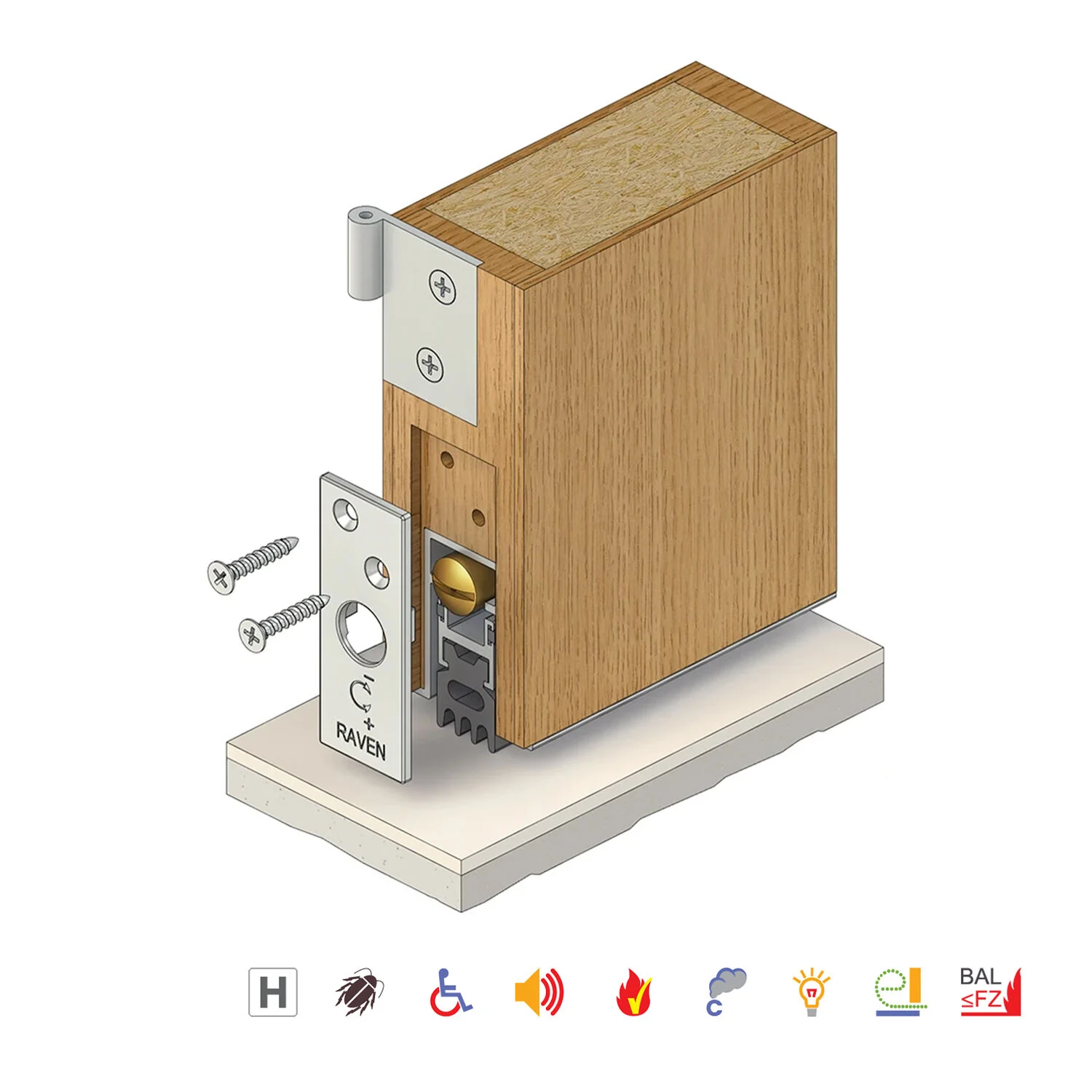

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

• A heavy duty, fully morticed, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened
• It is self levelling and reversible for left and right handed operation
• Acoustically designed, featuring an EPDM foam gasket for acoustic door applications
• Operated automatically by pressure against the door jamb on its adjustable brass strike.

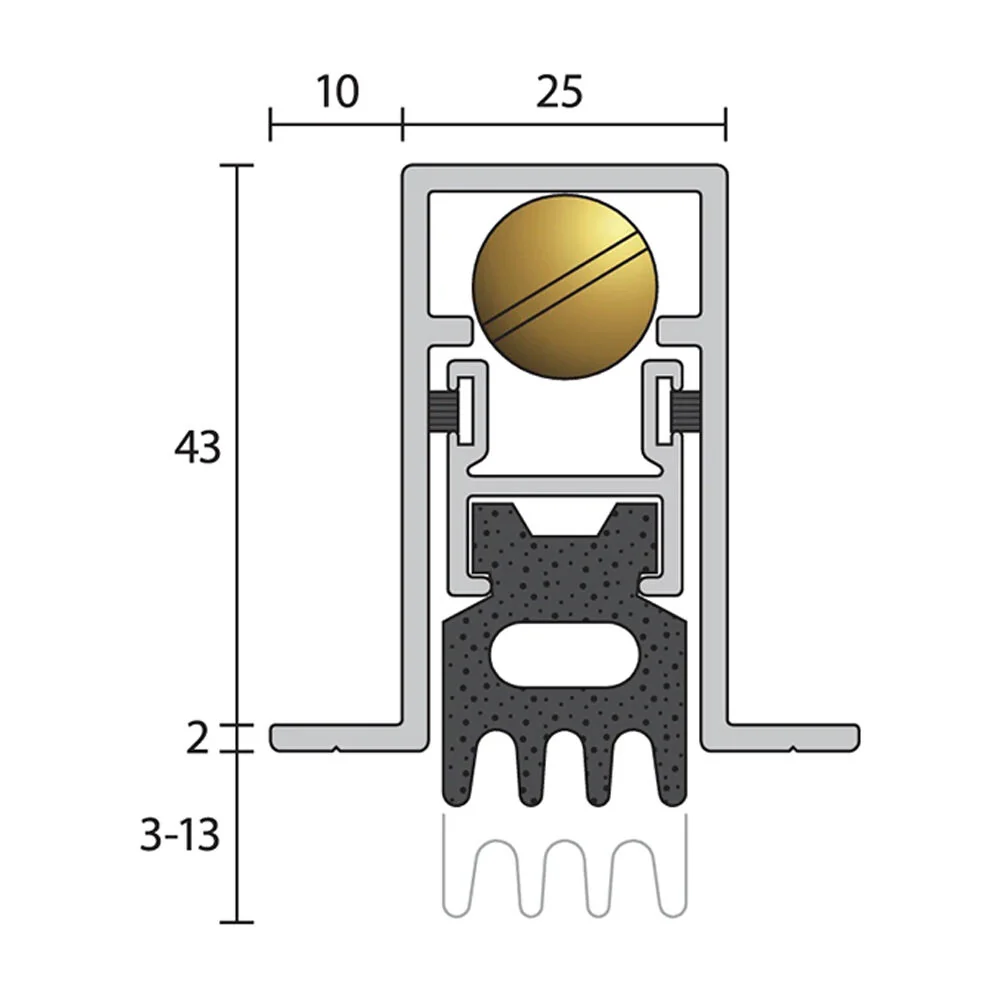

Specifications:

• Min and Max Gap: 3mm - 13mm
• Fixing: Screw Fix
• Width: 25mm
• Depth: 43mm
• Thickness: 2mm
• Length: 920mm
• Finish: Silver Anodised

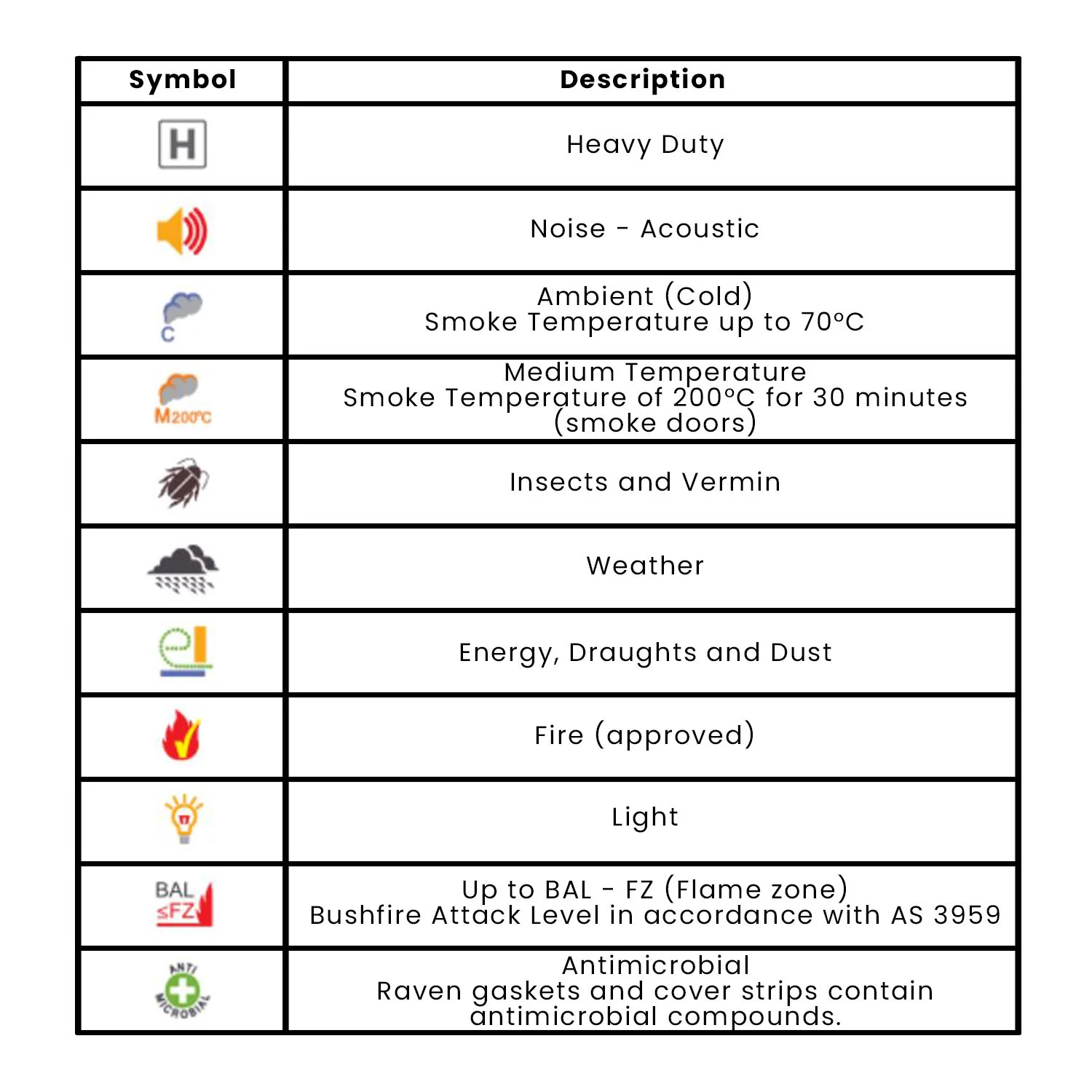

Approvals:

• NCC F7D6
• Approved Document E, Rated to BS EN ISO 717-1
• NCC S12C2, AS 1530.4, AS 1905.1
• Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
• Up to FD240, Up to FRL & FRR-/120/30
• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• Tested to over 1,000,000 operating cycles without failure
• AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
• BAL FZ when used with an approved proprietary fire rated door in accordance with AS 3959
