Raven RP24Si Silicon Perimeter Seal Silver Anodised - Available in Various Sizes

Raven RP24Si Silicon Perimeter Seal

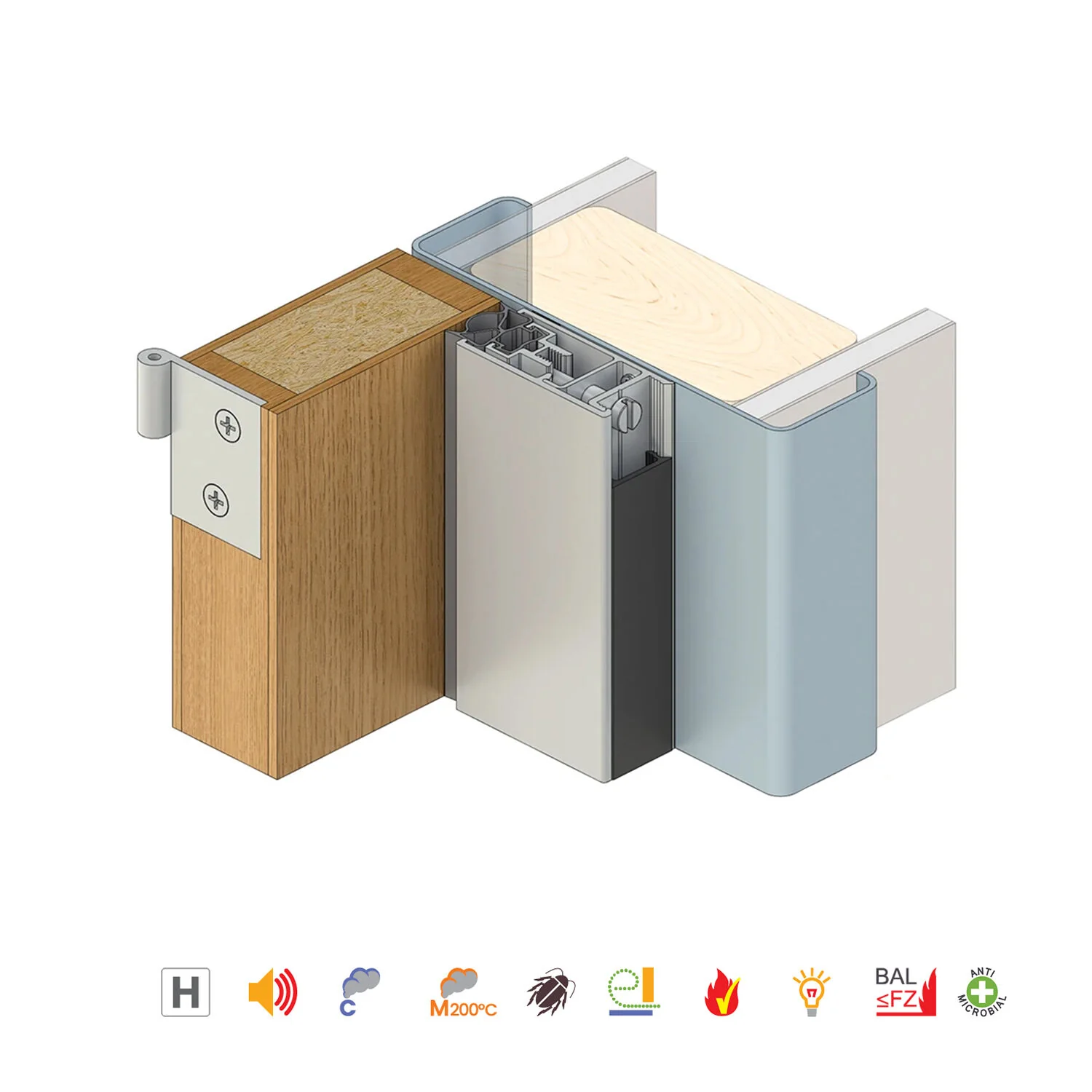

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• An effective door stop seal for noise, light and smoke
• It can be butt jointed for a neatly finished continuous seal
• Replacing the conventional door stop on metal or timber framed doors
• Tamper proof concealed fixings, the RP24 utilises independently adjustable screws to achieve up to 8mm sealing adjustment for maximum noise control
• The silicon rubber seal only requires normal door closing force

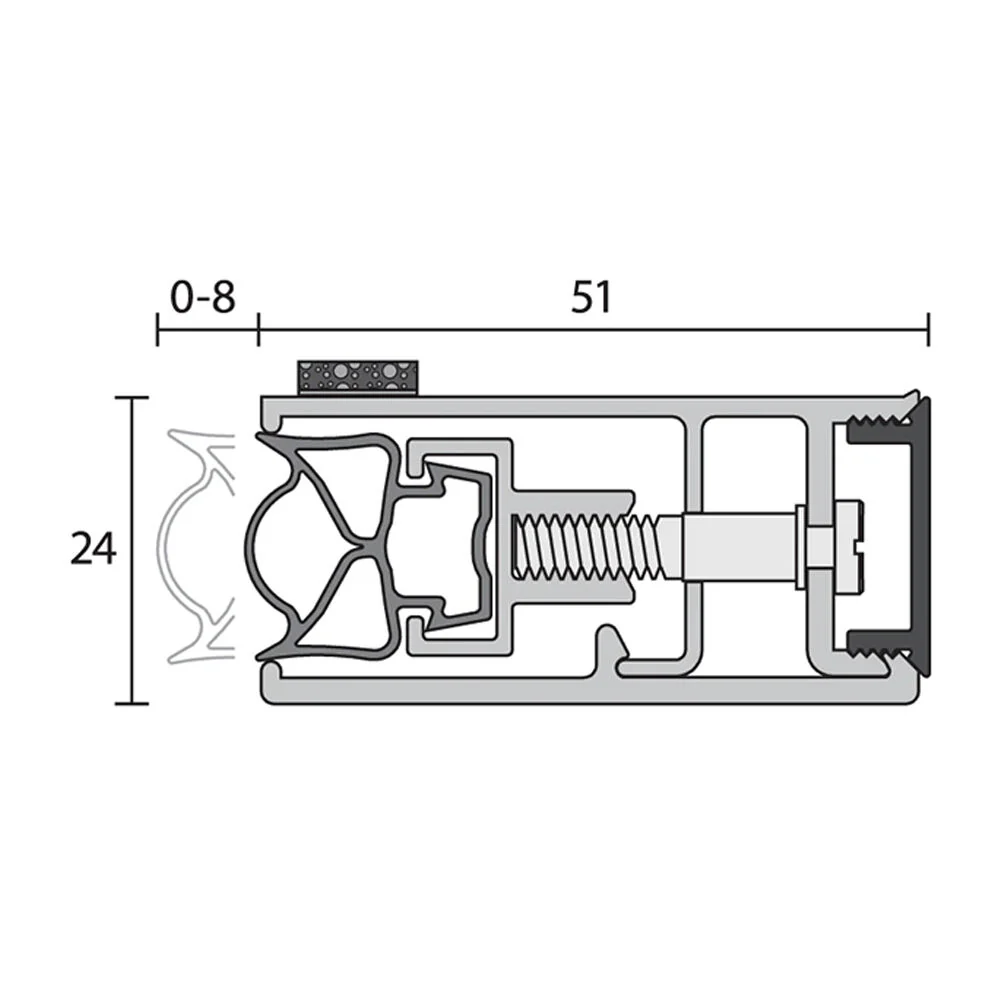

Specifications:

• Max Gap: 8mm
• Fixing: Screw Fix
• Width: 51mm
• Projection: 24mm
• Length:
  • Long Single Door Set (1 x 2000mm and 2 x 2750mm)
  • Single Door Set (1 x 1000mm and 2 x 2100mm)
• Finish: Silver Anodised

Approvals:

• UL: R37913, Certifire: CF 5710
• NCC F7D6
• Approved Document E, Rated to BS EN ISO 717-1
• AS 1905.1, NZBC C/AS2 4.16.2, NCC S12C2, AS 1530.4
• Approved Document B, BS EN 1634-1
• Up to FD240, Up to FRL & FRR-/120/30, To be used on door frames with a 25mm stop
• Gasket flammability index 1 when tested to AS1530.2
• NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, NCC S12C4, AS 1530.7, BS EN 1634-3
• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
