Raven RP105 Weather and Energy Seal Twin Section 3000mm Translucent A1053000

Raven RP105 Weather and Energy Seal

Weather and Energy Seal is designed to suit automatic sliding door operated, frameless glass and metal frame doors.

Weather and Energy Seal Function - is designed to prevent air, water, dust, insects, and noise from entering or escaping through gaps in doors and windows.

Features:

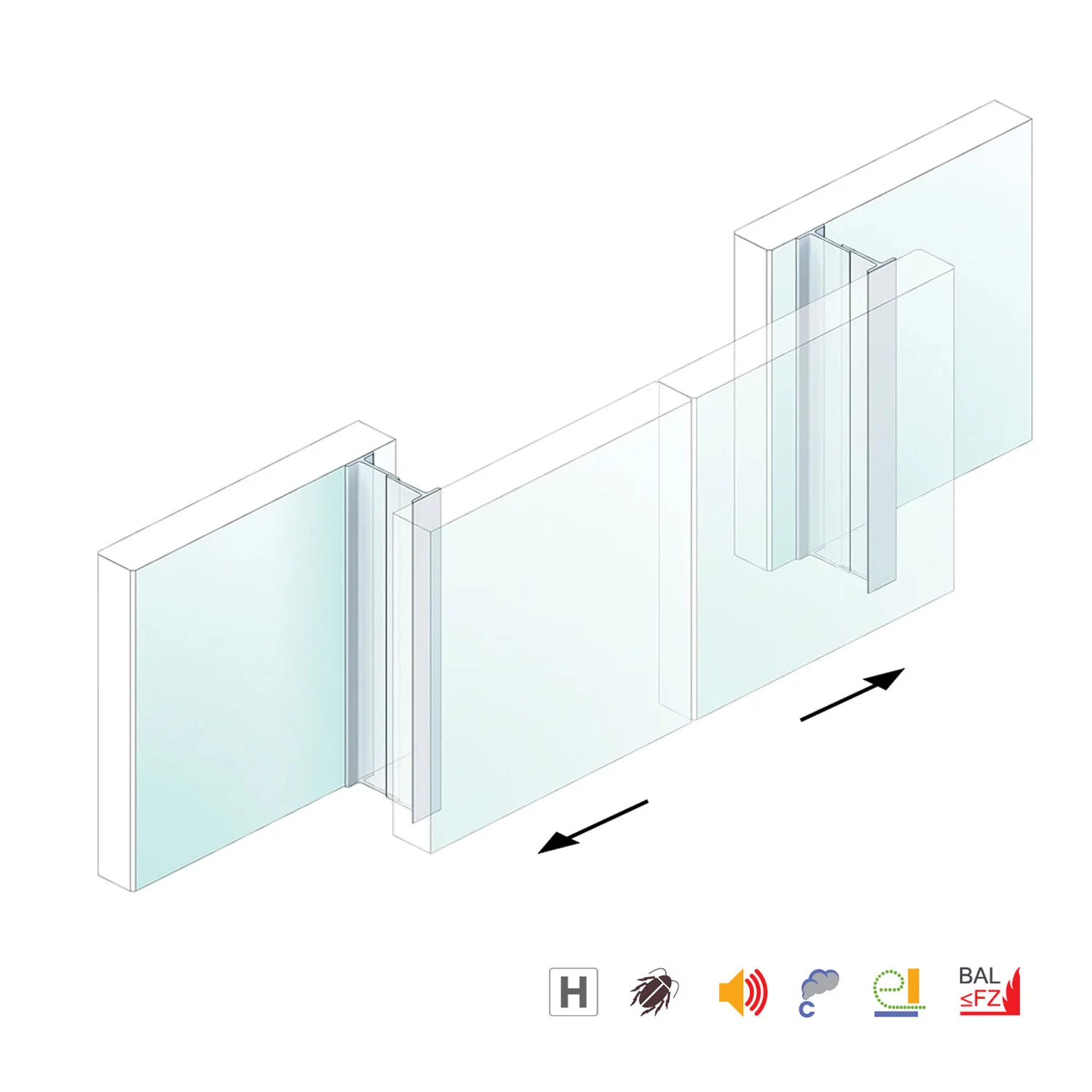

• Comprising of two sealing sections, the RP105 is fitted in an overlap configuration to effectively seal the vertical gap between the fixed and active sliding door leaf.
• Used in conjunction with Raven brush strip door bottom seal RP74F, meeting stile seals (astragals) RP103, RP104, RP42 and Raven Threshold plates.
• Global GreenTag - Platinum

Specifications

• Location: Automatic sliding door operated, frameless glass & metal frame doors.
• Size: 3000mm
• Fixing: Self-adhesive

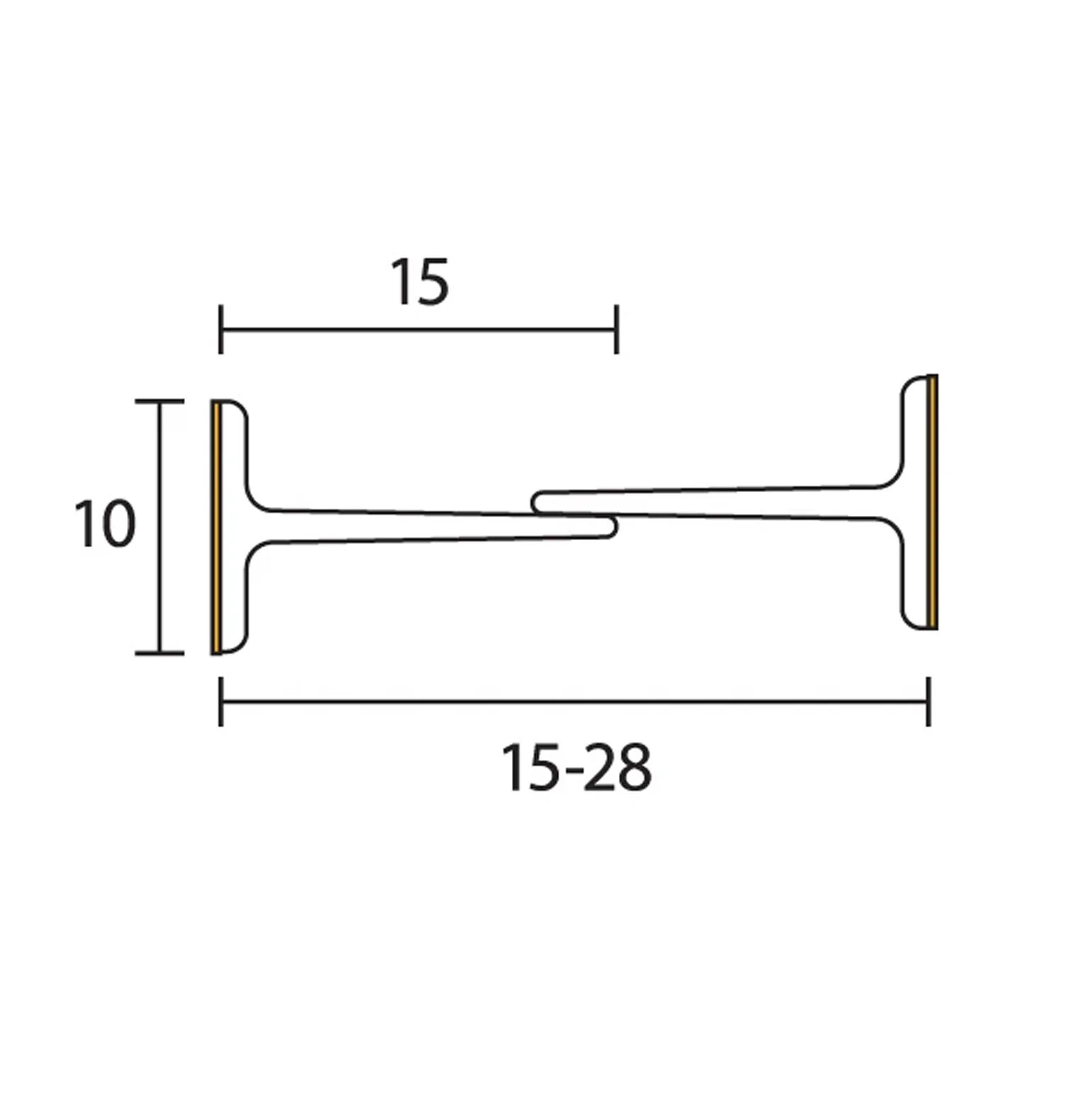

• Minimum and Maximum Gap: 15mm to 28mm (Gap is determined prior to installation)
• Material: Rigid and Flexible PVC (Clear rigid and flexible co-polymer seal)
• Door/Frame Construction: Aluminium, Glass
• Door Type: Sliding
• Finish: Translucent

Note: Contact surface must be clean, smooth and if painted, well cured. Self-adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces.

Approvals:

• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
