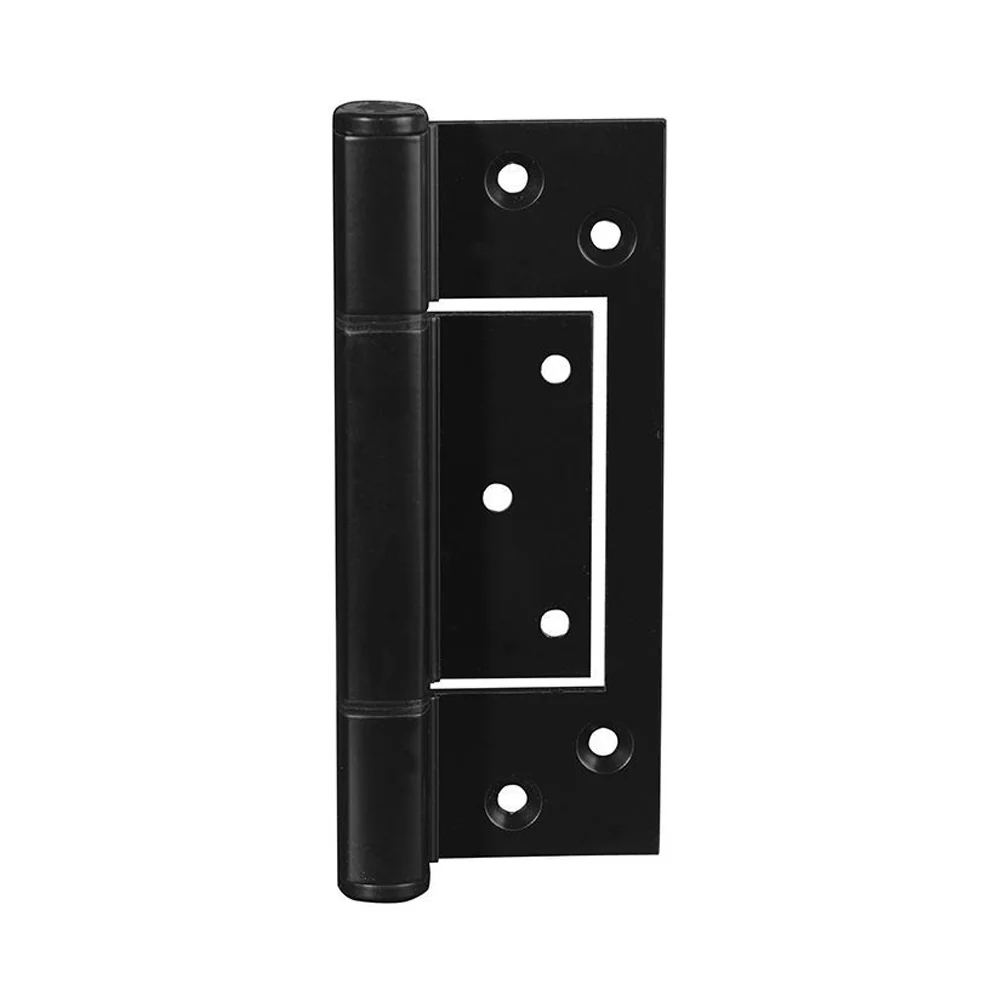

McCallum A105F Aluminum Interfold Heavy Duty Door Hinge 130mm Black A105BLK

McCallum A105F Aluminum Interfold Heavy Duty Door Hinge
A105BLK

Interfold Hinge used for concealed, interior, and partial doors, as well as providing sufficient closing force for wood and lightweight metal doors.

Interfold Hinge Function - suitable for either Centre Pocket or Front Edged Glazing systems.

Application:

• Suitable for aluminium entrance doors in high usage situations
• Suitable for either centre pocket or front edge glazing systems
• Suitable for some timber door applications. Pre-drilling of the holes in the timber may be required

Specifications:

• Hinge Type: Interfold Hinge
• Minimum Door Thickness: 40mm
• Material: High strength Aluminium Alloy T6 minimum tensile 254 mpa
• Hinge Pin: 6mm Diameter Stainless Steel 304 grade
• Bushes: Flanged Nylon
• Knuckle: Squareline - Heavy Duty
• Endcaps: Aluminium Pressed Interference fit
• Hinge Positioning Locator: Yes
• Maximum Weight Capacity: 80kg’s – 3 Hinges
• Finish: Black Powdercoat
