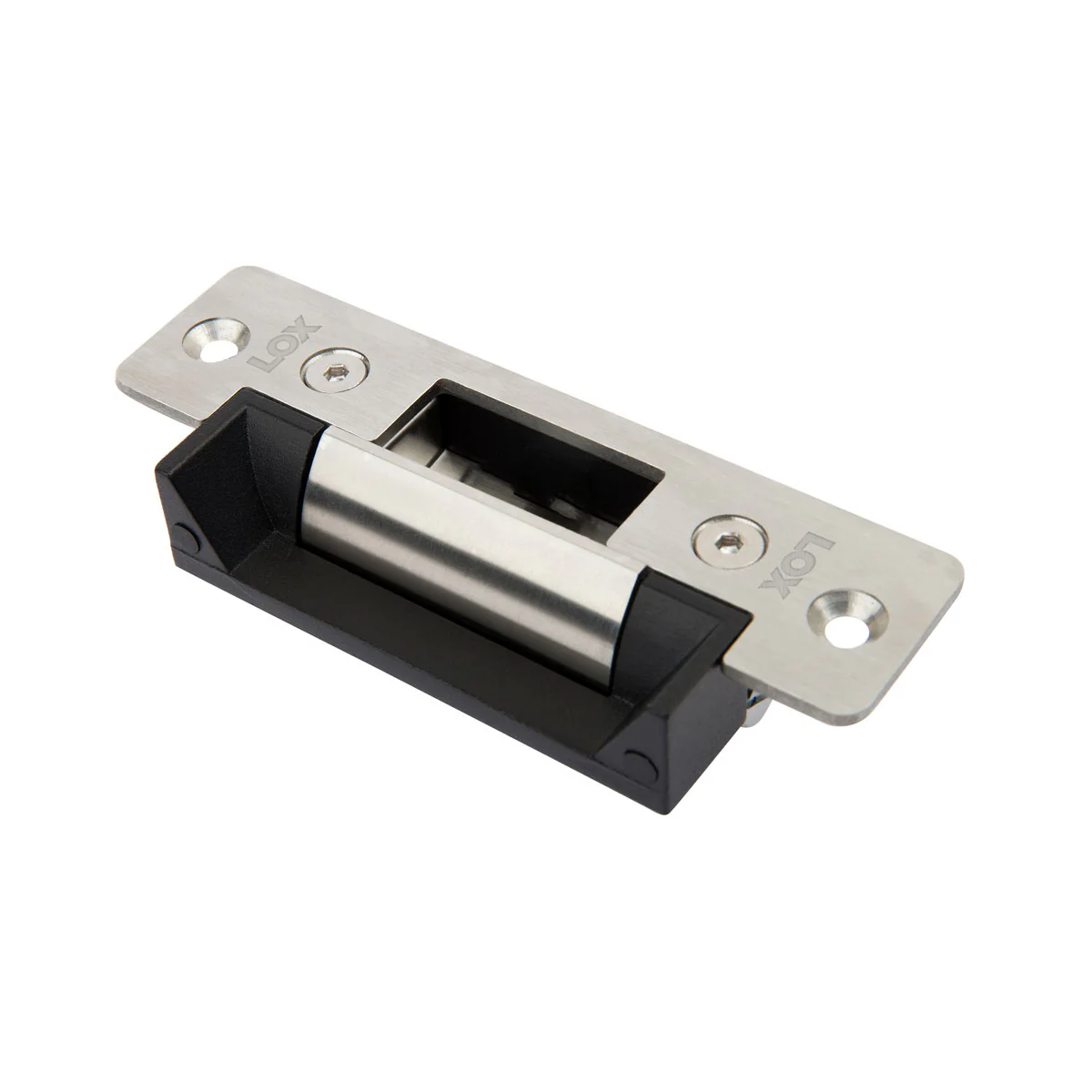

LOX ES10 Electric Strike Non-Monitored 12/24V DC Weather Resist IP56
LOX Electric Strike
ES10
The ES10 series electric strikes are designed for use with all access control systems.
Retrofit compatible with FSH and Padde
Features:
- Stainless steel faceplate.
- Fail safe/fail secure is changeable on site.
- Suitable for use on hinged doors to work with an extensive range of locks.
- Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS/NZS 1905, Part 1-1997 and BS 476: Part 22-1987 (Fire resistant door sets).
Specifications:
- Dual voltage 12/24VDC 12VDC = 200mA 24VDC = 100mA
- Non-Monitored Weather Resistant IP56
- Fire rated up to 4 hours
- Power to lock/power to open field selectable
- Stainless steel faceplate
- Stainless steel striker
- Operational temp range -20DEG.C to 60DEG.C
- Solenoid can be continuously powered
- Optional extension lips
- Self adhesive installation template
- Includes tab mounting kit
- Pre-drilled for extension lips
- Holding strength up to 1200kg tested 1 Million Cycles
- ES10 is suitable for 18mm latch with a 3mm door gap
$27.52
Original: $91.72
-70%LOX ES10 Electric Strike Non-Monitored 12/24V DC Weather Resist IP56—
$91.72
$27.52Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
LOX Electric Strike
ES10
The ES10 series electric strikes are designed for use with all access control systems.
Retrofit compatible with FSH and Padde
Features:
- Stainless steel faceplate.
- Fail safe/fail secure is changeable on site.
- Suitable for use on hinged doors to work with an extensive range of locks.
- Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS/NZS 1905, Part 1-1997 and BS 476: Part 22-1987 (Fire resistant door sets).
Specifications:
- Dual voltage 12/24VDC 12VDC = 200mA 24VDC = 100mA
- Non-Monitored Weather Resistant IP56
- Fire rated up to 4 hours
- Power to lock/power to open field selectable
- Stainless steel faceplate
- Stainless steel striker
- Operational temp range -20DEG.C to 60DEG.C
- Solenoid can be continuously powered
- Optional extension lips
- Self adhesive installation template
- Includes tab mounting kit
- Pre-drilled for extension lips
- Holding strength up to 1200kg tested 1 Million Cycles
- ES10 is suitable for 18mm latch with a 3mm door gap
