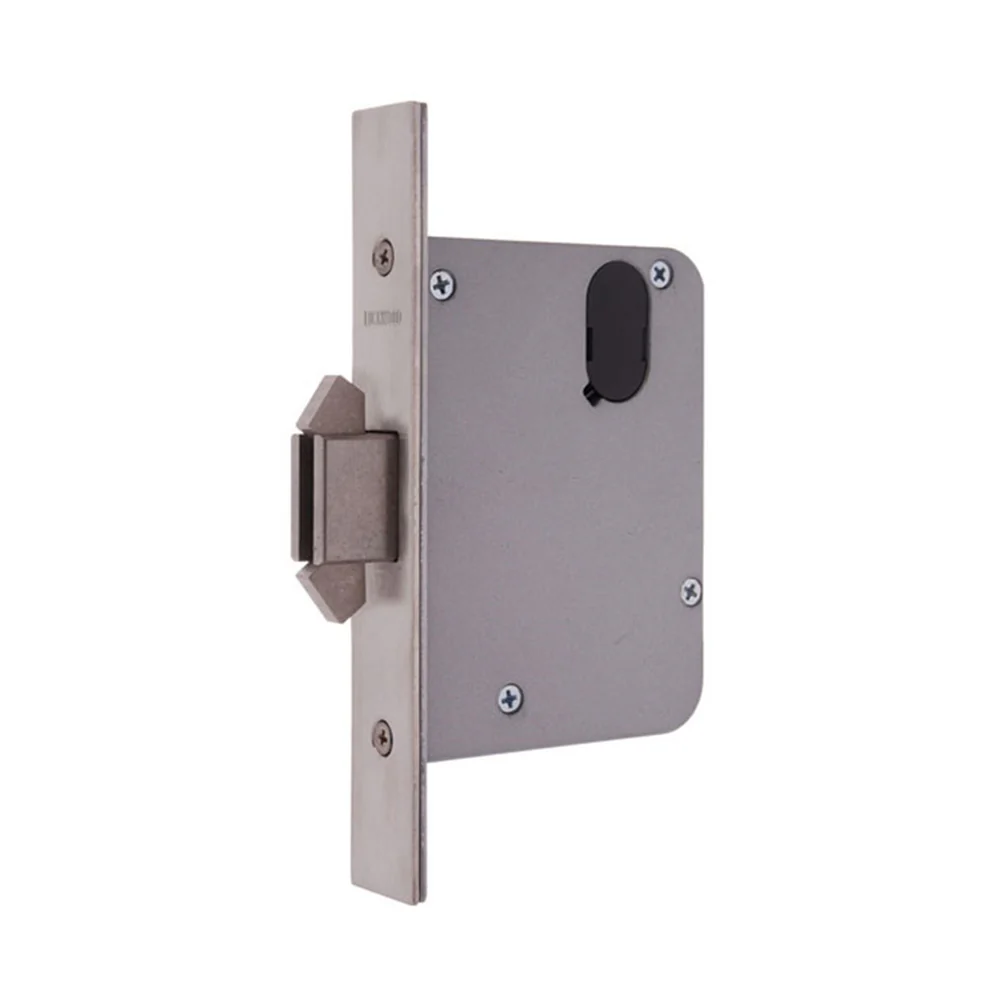

Lockwood Mortice Sliding Door Primary Lock 60mm Satin Chrome 3573SC

Lockwood Mortice Sliding Door Primary Lock
3573SC

Mortice Lock a pocket cut into the short edge of the door, allows a longer and thicker mortise box to slide into the door itself, providing superior protection.

Mortice Lock Function - latch retracted by knob / lever from either side. Deadbolt extended or retracted by key from outside or turn knob from inside.

Features:

• Suitable for sliding doors, especially those exposed to heavy duty use in industrial and commercial buildings, institutions, clubs, schools, hospitals, hotels, and similar buildings
• Mortice sliding door lock
• Operated by key outside or by turnsnib or key inside
• Easily adapted to most functions
• Supplied less cylinder
• Compatible to most restricted keying systems

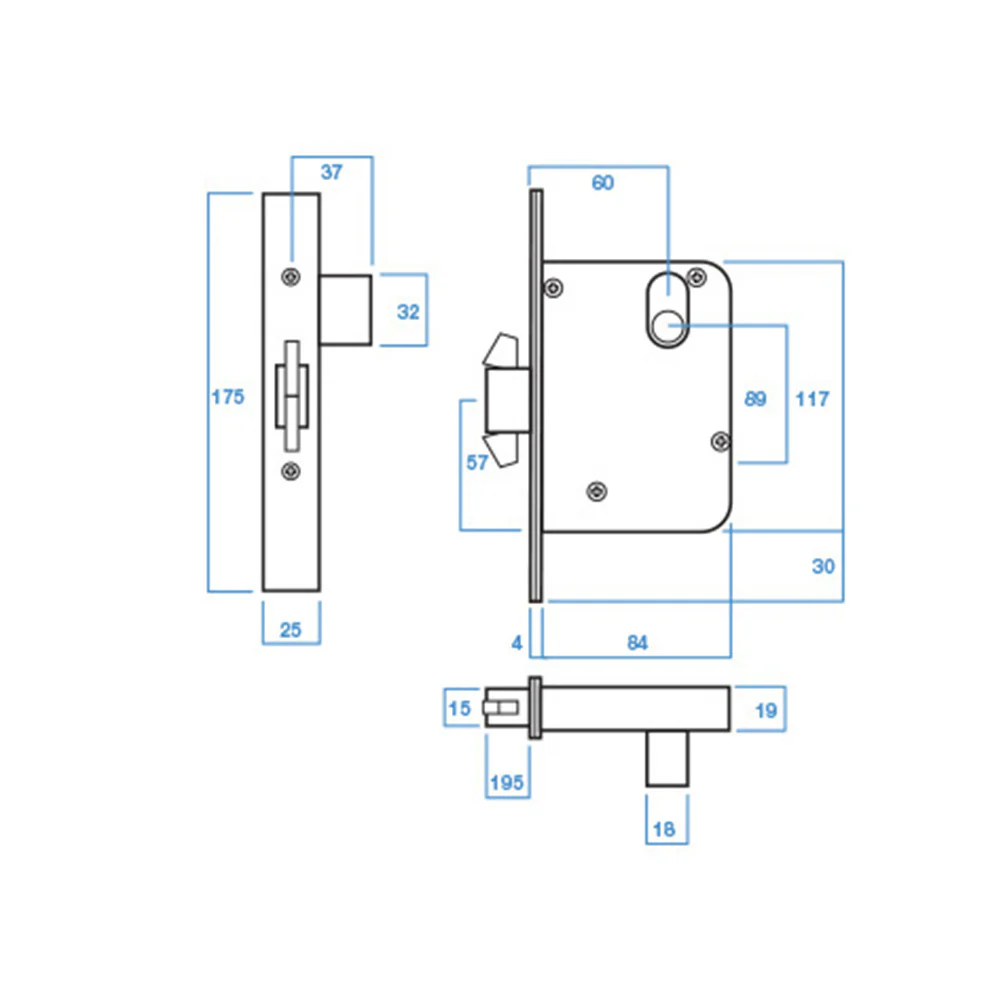

Specifications:

• Backset: 60mm
• Door Thickness: 32mm to 50mm
• Holdback Function Built-in: No
• Lock Grade: Commercial
• Mortice Sliding Door Lock: Yes
• SCEC Endorsed: No
• Fire Rated: Yes (up to 4 hours)
• Accepts 570 Type Cylinder: Yes
• Face Plate Length: 175mm
• Face Plate Thickness: 4mm
• Face Plate Width: 25mm
• Handing: Non-handed
• Mortice Lock Case Depth: 84mm
• Mortice Lock Case Height: 117mm
• Mortice Lock Case Thickness: 19mm
• Compatible With Most Restricted Keying Systems: Yes
• Anti-lockout Function: No
• Finish: Satin Chrome
