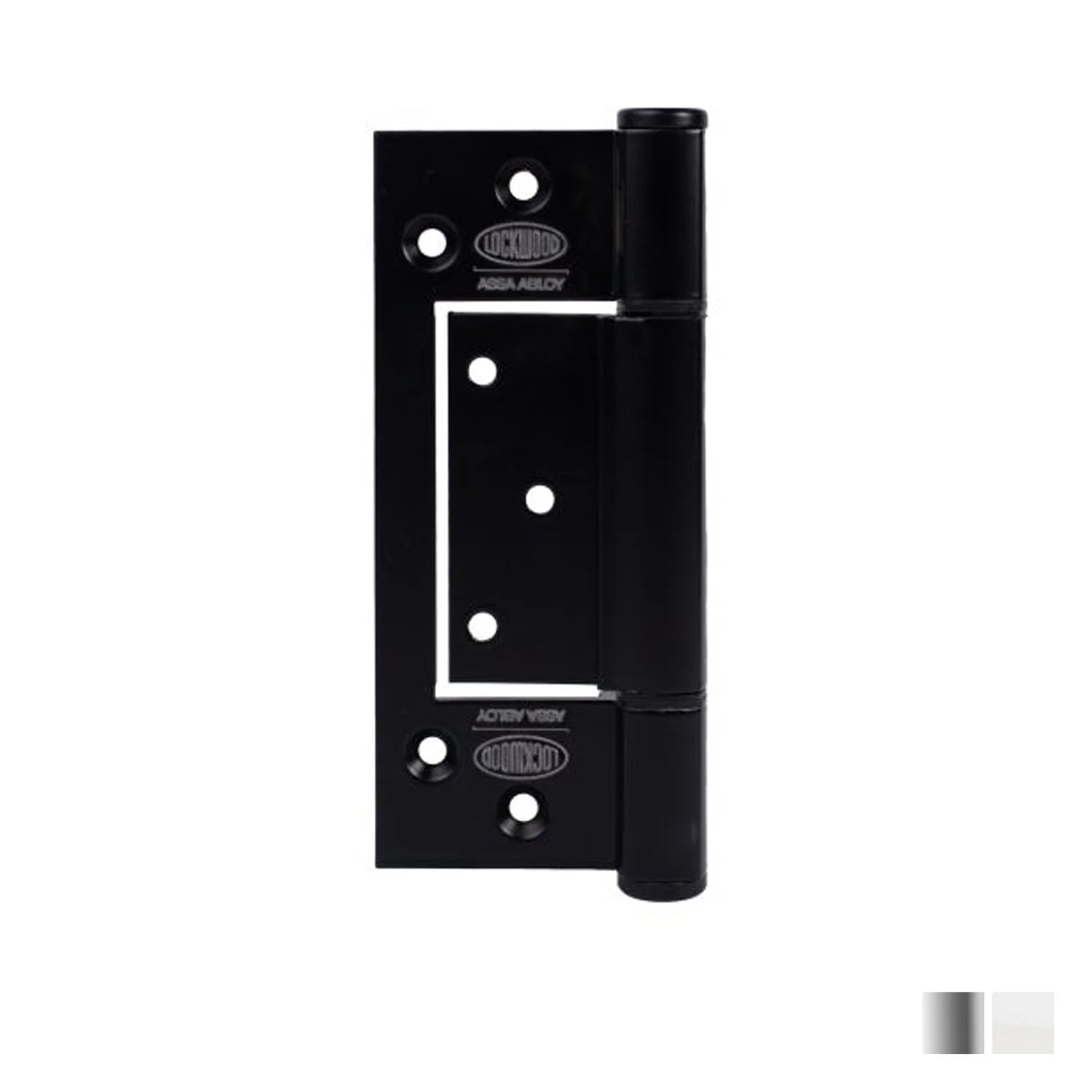

Lockwood Fast Fix Timber and Aluminium Hinge - Available in Various Finishes
Lockwood Fast Fix Timber and Aluminium Hinge
Door Hinge - enable doors to function properly by allowing controlled movement while ensuring stability and ease of operation.
Door Hinge Function - is a mechanical device that allows a door to swing open and closed. Its primary function is to provide a pivot point for the door, enabling it to rotate smoothly along a fixed axis
Features:
- The Lockwood AH130 is a heavy duty fast fix hinge with face fix flanges to suit aluminium commercial door applications
- Heavy duty, bi-directional face fix locator flanges allows for faster installation
- Nylon bushes
- Squareline heavy duty knuckles
- Interference pressed fit aluminium end caps
Specifications:
- Minimum Door Thickness: 40mm
- Height: 130mm
- Width: 50mm
- Hinge Material: 6063-T6 alloy
- Hinge Pin: 6mm 304 grade Stainless Steel
-
Installation Guide
- Up to 2100 high x 900 x 100kg– 3 hinges
- Up to 2400 high x 900 x 100kg– 4 hinges
-
Supplied with:
- 7 of 10G x 12mm, 304SS undercut countersunk self tapping (AB) Phillip drive screws
- 3 of 10G x 32mm, 304SS undercut countersunk self tapping (AB) Phillip drive screws
-

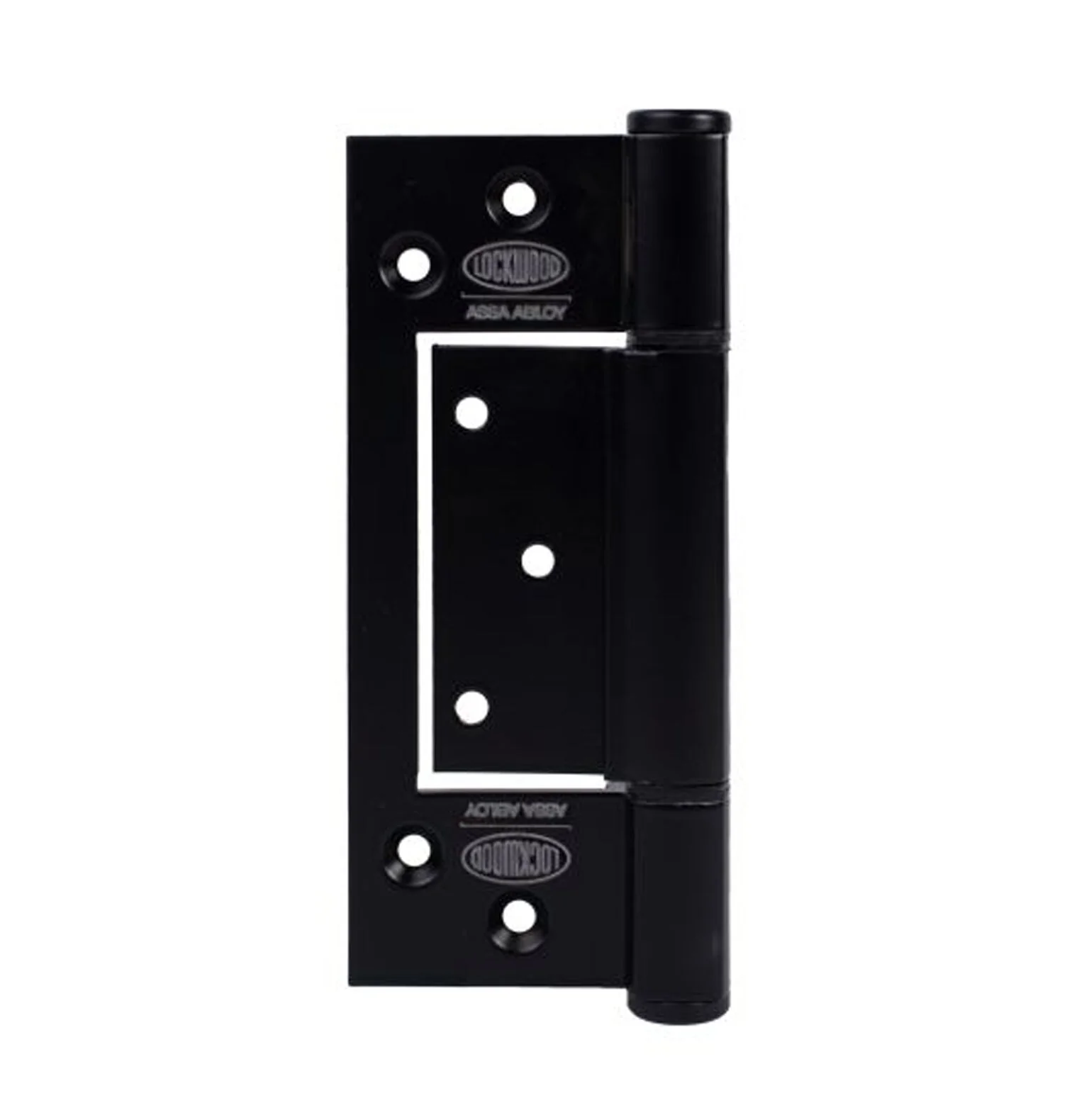

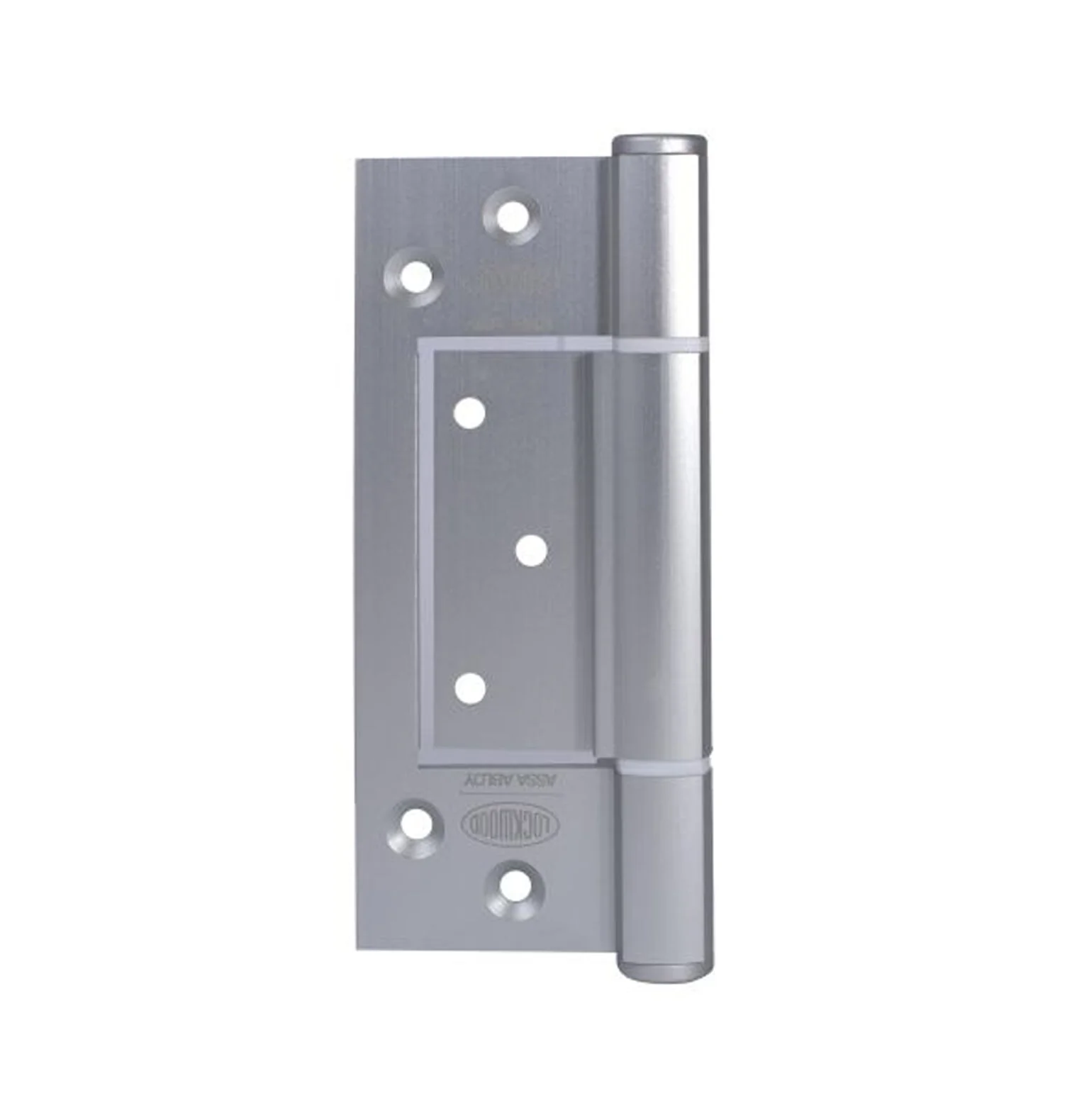

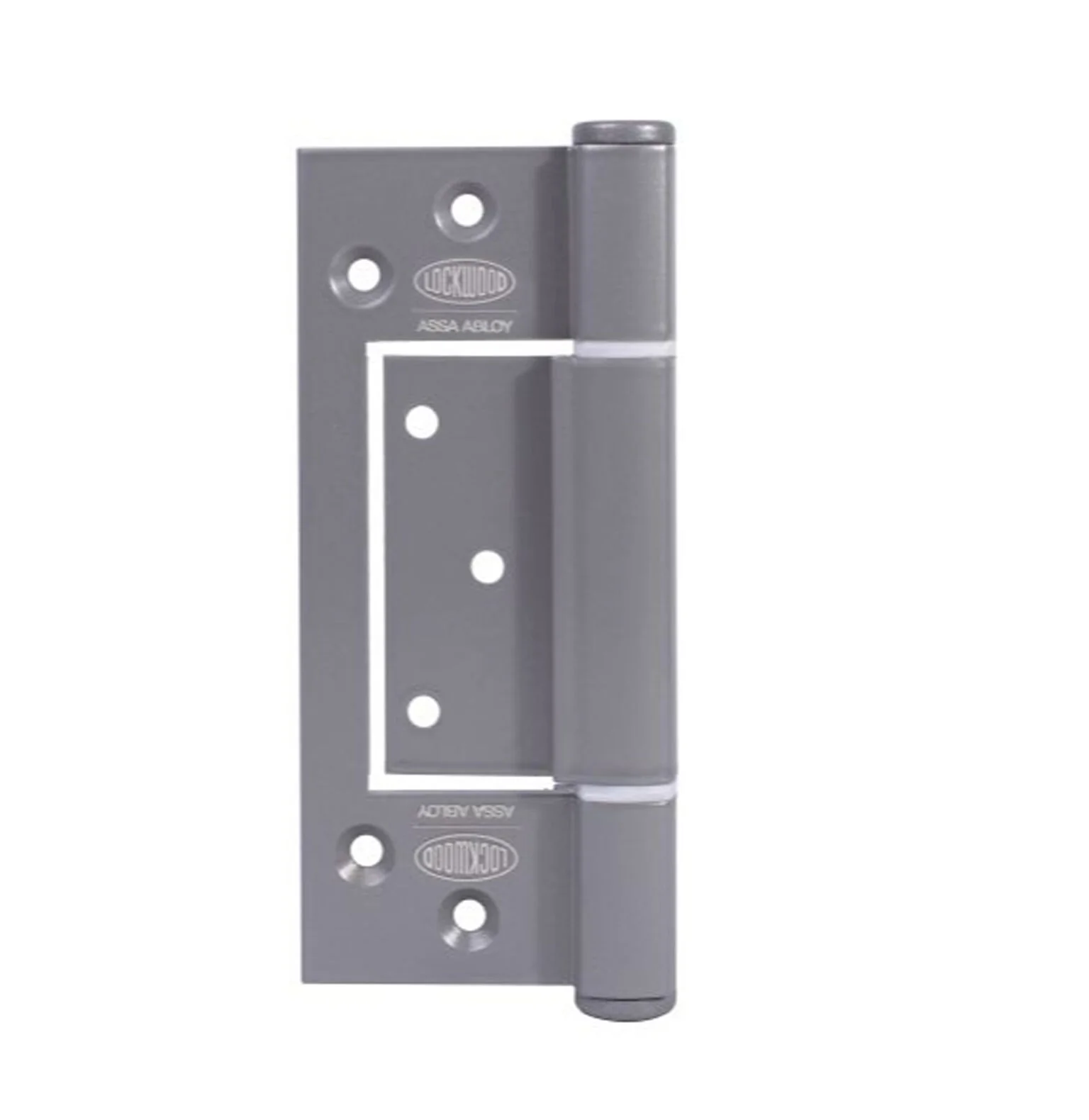

Available Finish:
- Clear Anodised
- Matt Black
- Silver
Original: $12.97
-70%$12.97
$3.89Product Information
