Lockwood Entrance Door Pack 3572 Mortice Lock with Cylinder and Square End Plate Furniture

Lockwood Entrance Door Pack 3572 Mortice Lock with Cylinder and Dormakaba 6600 Square End Plate Furniture

Entrance Lever is defined as a lock where the unlocked by key from outside when outer lever is locked by turn-button on inside lever. Inside lever always unlocked

Entrance Lever Function - Outisde key unlocks outside lever, inside lever free at all times, push button locks outside lever.

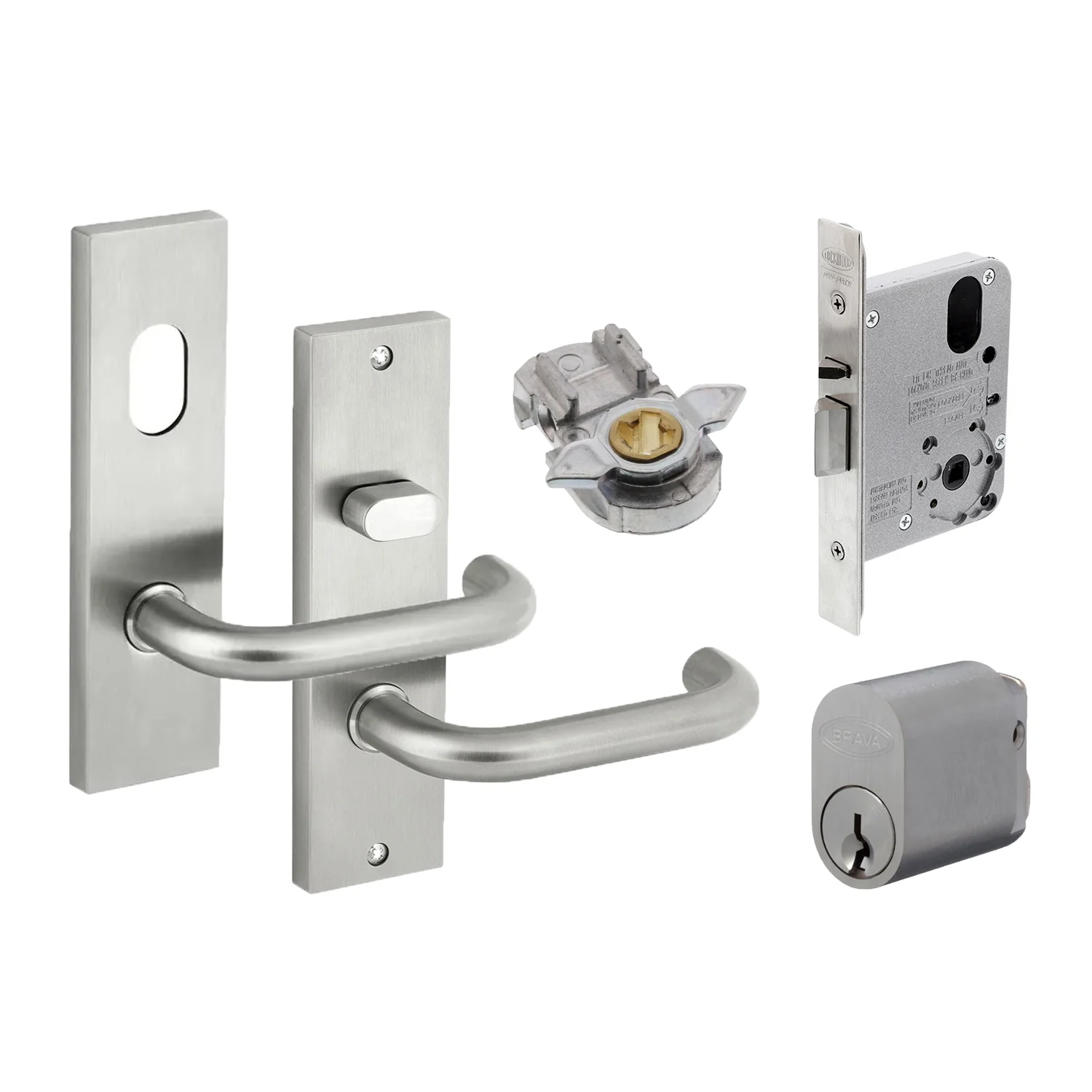

Includes:

• 1 x Lockwood Door Mortice Lock Synergy Vestibule 60mm Backset Satin Chrome (3572SC)
• 1 x Lockwood Turnsnib Adaptor Assembly (SP35725250)
• 1 x Dormakaba Door Lever on Square End Plate Furniture with Cylinder Hole Satin Stainless Steel (6600/30G)
• 1 x Dormakaba Lever on Rectangular Interior Square End Plate with Turnsnib Satin Stainless Steel (6603/30G)
• 1 x Brava Oval Cylinder X W Z Rabbit Cams 6 Pin Keyed Differ Satin Chrome (5070USCKD)

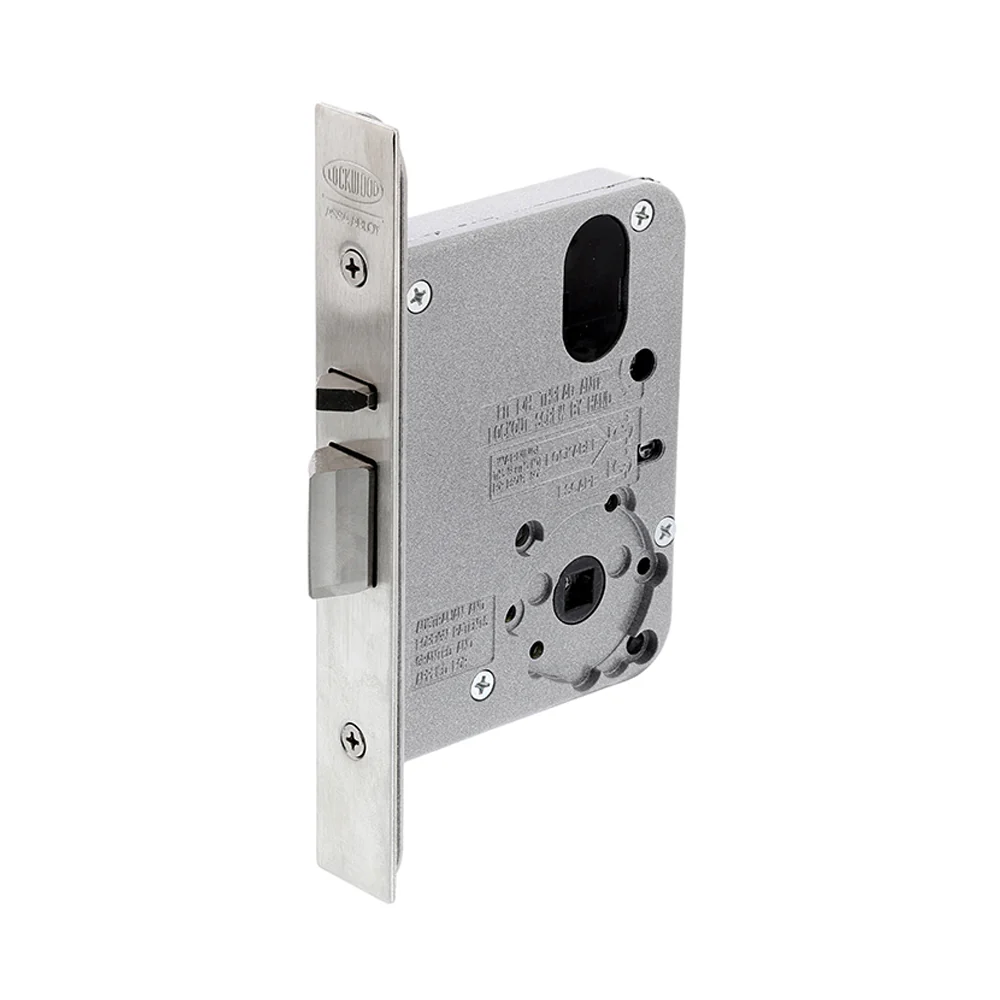

Lockwood Synergy Vestibule Mortice Lock
3572SC

Features:

• Vestibule function mortice lock
• Operated by key or handle outside or by turnknob, key or handle inside
• Can be set to escape or lockable function on either side of lock
• 15mm stainless steel reversible latch bolt
• Easily adapted to any function
• Cylinder sold separately
• Fire Rated to 4 hours

Specifications:

• Door Thickness: 32mm - 50mm
• Backset: 60mm
• Face Pate: 175mm (L) x 25mm (W)
• Case Size: 117mm (H) x  84mm (D)
• Pitch: 64mm
• Finish: Satin Chrome

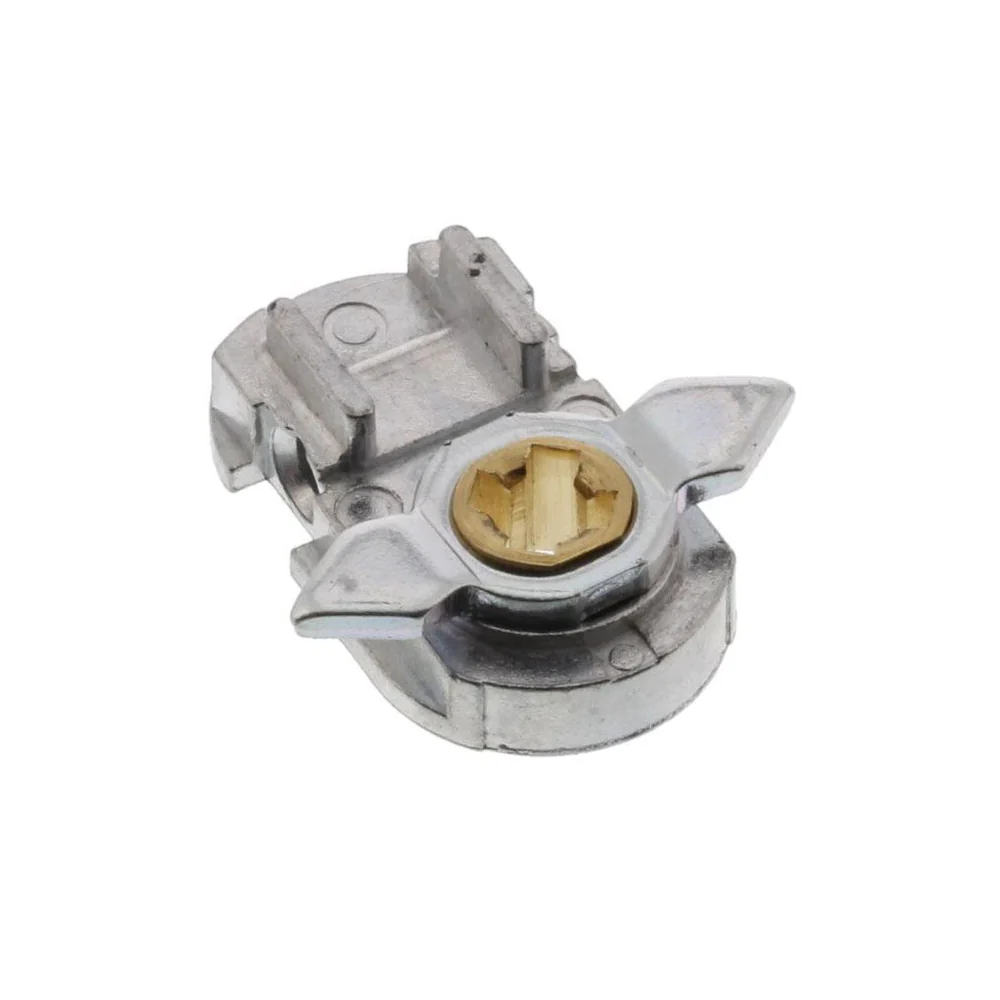

Lockwood Turnsnib Adaptor Assembly
3572-5250

Features:

• Suits 3572EA; 3572XA; 3572WA, 3572XT, 3572T; 3574WT; 3574EA; 3574ET; 3578WT function locks
• Adaptor locks or unlocks handle or handles, (depending on spindle hub settings)



Dormakaba Door Lever on Square End Plate Furniture
6600/30G

Features:

• A true rectangular plate displaying clean modern lines with bevelled edges
• Manufactured using hygienic and corrosion resistant
• A characteristic feature of Stainless Steel door furniture is the naturally gleaming finish
• Concealed fixed external plates with visible fixed internal plates connected with bolt through fixings
• Extensive range of optional plate functions
• Designed with bolt through the door fixing for use with the dormakaba MS2602 series mortice locks and latches
• Heavy duty spring mechanism manufactured using the highest grade materials
• Nylon bush preventing metal to metal wear and providing a smoother friction free movement with a heavy duty star spindle for positive turn actuation and furthermore provides for true installation alignment
• Compatible with all Coastal and Urban lever designs
• The 6600 series plate furniture is fire rated and complies with AS1905.1-2005 Part 1
• AS1428.1 2009 Disabled Compliant

Specifications:

• Door Thickness: 32mm to 50mm
• Height: 165mm
• Width: 45mm
• Projection: 10mm
• Material: Stainless Steel
• Fire Rated: Yes
• Finish: Satin Stainless Steel

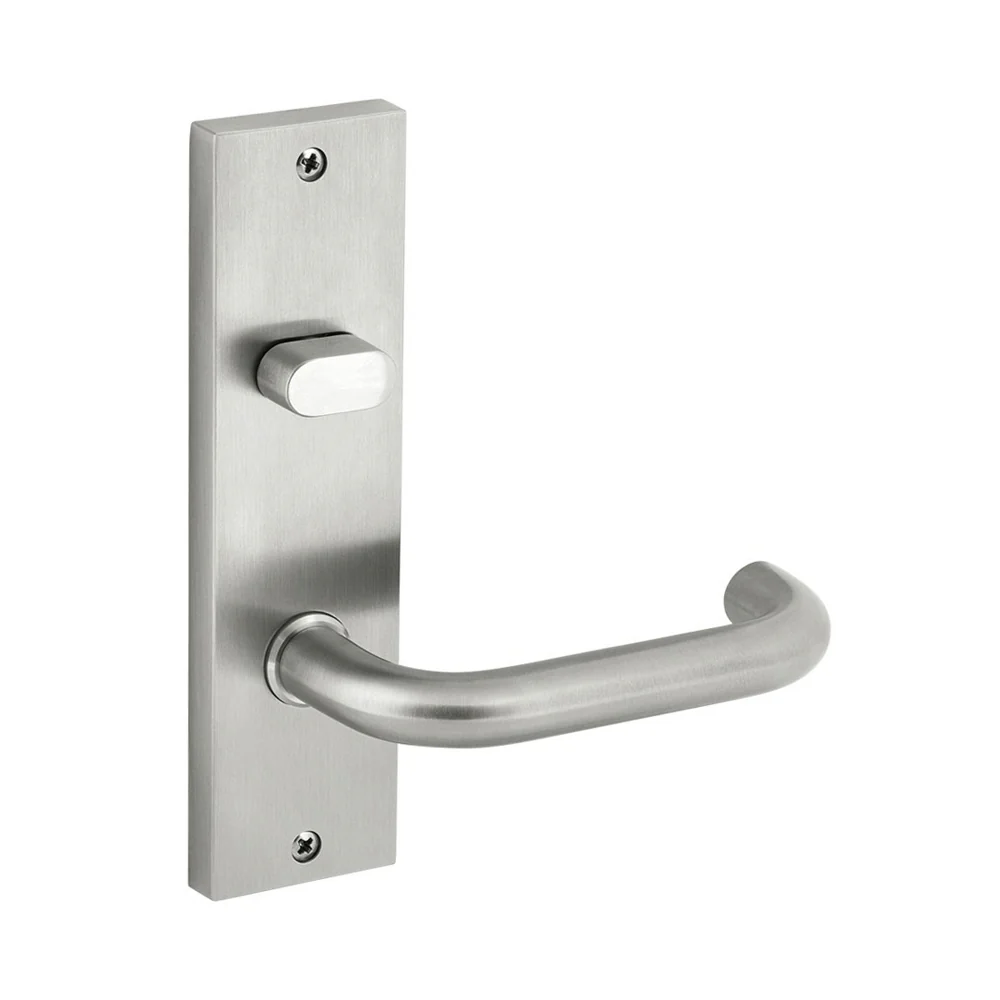

Dormakaba Lever on Square End Plate Turnsnib
DF66033001G

Features:

• Rectangular interior square end plate
• Standard turnsnib with Noosa 30 series lever
• Heavy duty spring mechanism manufactured using the highest grade materials
• Manufactured using 316 corrosion resistant solid stainless steel
• Visible fixing

Specifications:

• Door Thickness: 32-50mm
• Height: 165mm
• Width: 45mm
• Projection: 10mm
• Screw Fix Spacing: 148mm
• Finish: Satin Stainless Steel

Compliance:

• Fire Rating Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
• Disabled Compliance BCA AS1428.1 -2009 compliant leverset.

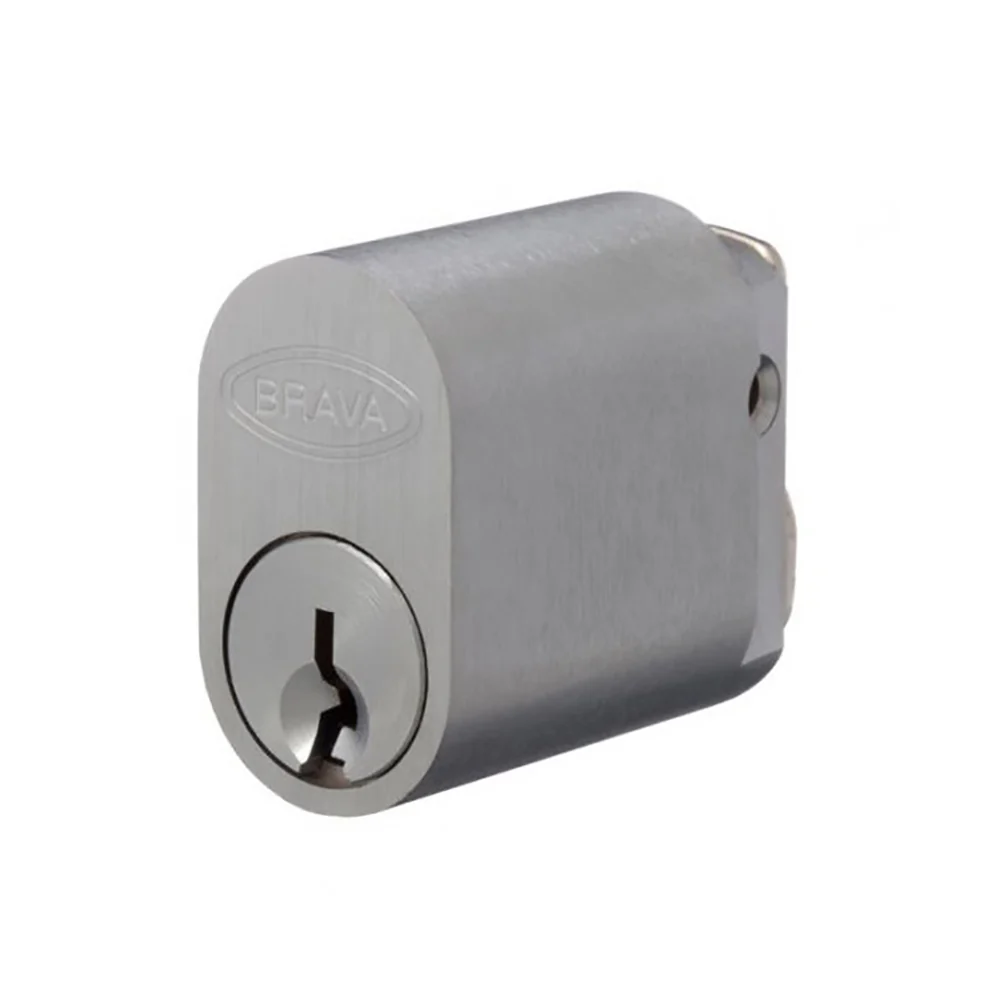

Brava 570 Oval Cylinder
5070USCKD

Features:

• Brava type 570 cylinder
• Includes X, W, Z & Rabbit Cams
• 2 keys supplied

Specifications:

• Cylinder: 6 Pin
• Keying: Keyed to Differ
• Finish: Satin Chrome
