Lockwood Door Lock Pack Induro Mortice Palladium Aria Levers Primrose Cylinder

Yale Aria Induro Hinged Door Lock includes Lock, Aria Handles, Strike Plate and Cylinder



Includes:

• 1 x Lockwood Induro Mortice Lock 30mm Adj Throw Stainless Steel LW7130L *No Strike*
• 1 x Lockwood Optimum Strike Double Sided with Tongue OPS001SS
• 1 x Lockwood Door Handle Palladium Aria On Long Plate Primrose (PL4/85/27PPCPRIMROSE)
• 1 x Austyle C4 5 Pin Euro Double Cylinder 65mm Satin Chrome 49144



Lockwood Induro Mortice Lock
LW7130L

Features:

• The Lockwood Induro hinged door multi-point mortice locks less cylinder.
• 2 point locking
• Supplied with 2 mm latch packer
• Designed for use in residential aluminium hinged or bi-fold doors
• Latch deadlocked with key
• The bolt is now selectable between default setting long throw (24 mm) and short throw (13 mm) with a simple selector feature to switch between settings
• Palladium (Xtra) Snib furniture is required in order to use the snib-lock function
• Passage mode gives convenient access from inside and outside without the need for a key
• Safety mode is activated and deactivated by operating the snib lever from inside and requires the key to unlock from outside.
• Handles locked securely from both inside and outside and requires key to unlock from either side
• Accepts fixed cam euro cylinder (not supplied).
• Accepts 7.6 mm or 8 mm spindle
• Achieves Australian Standards AS 4145.2-2008 Security Level S7 and Durability Level D7

Specifications:

• Backset: 30mm
• Latch Bolt Size: 12mm
• Bolt Throw Size: 24mm (selectable down to 13 mm)
• Door Thickness: 32mm to 45mm
• Face Plate Size: 210mm x 24mm
• Case Size: 180mm x 45mm
• Finish: Brushed Stainless Steel



Lockwood Optimum Strike Double Sided with Tongue
OPS001SS

Description:

• Height: 180mm
• Width: 24mm
• Thickness: 1.5mm
• Finish: Sainless Steel



Lockwood Palladium Long Plate Door Furniture w/ Aria Lever
PL4/85/27PPCPRIMROSE

The Palladium Series represents the highest standard in residential and semi-commercial door hardware and is brought to you through modern innovative designs, combined with quality manufacturing. A wide range of lever options is available to enable a common style throughout the home.

Features:

• Stylish range of contemporary non handed lever designs
• Range of available finishes.
• Solid metal lever escutcheon
• The Palladium Series mechanism incorporates a lever handle torsion spring and shuttle mechanism which provides a positive feel and increased product life
• All lever handles are reversible
• Suits 48.5 mm and 85 mm pitch mortice locksets
• Includes 7.6 mm square stepped spindle
• Available in trade pack
• Lockwood Palladium door furniture is supplied as a complete set, with both the internal and external plates.

Specifications:

• Suitability: Residential and semi-commercial buildings
• Dimensions: 222 x 31 x 9mm
• Handing: Easy, field selectable handing.
• Materials: All plates and levers in the Palladium Series are constructed from solid zinc die-cast.
• Fixing: Plates are designed to fit back to back to be fully concealed externally.
• Door Thickness: Minimum 32mm - maximum 45mm door thickness.
• Keying: Use with Euro profile cylinder.
• Finish: Powdercoat Primrose
• Lever: Aria #27

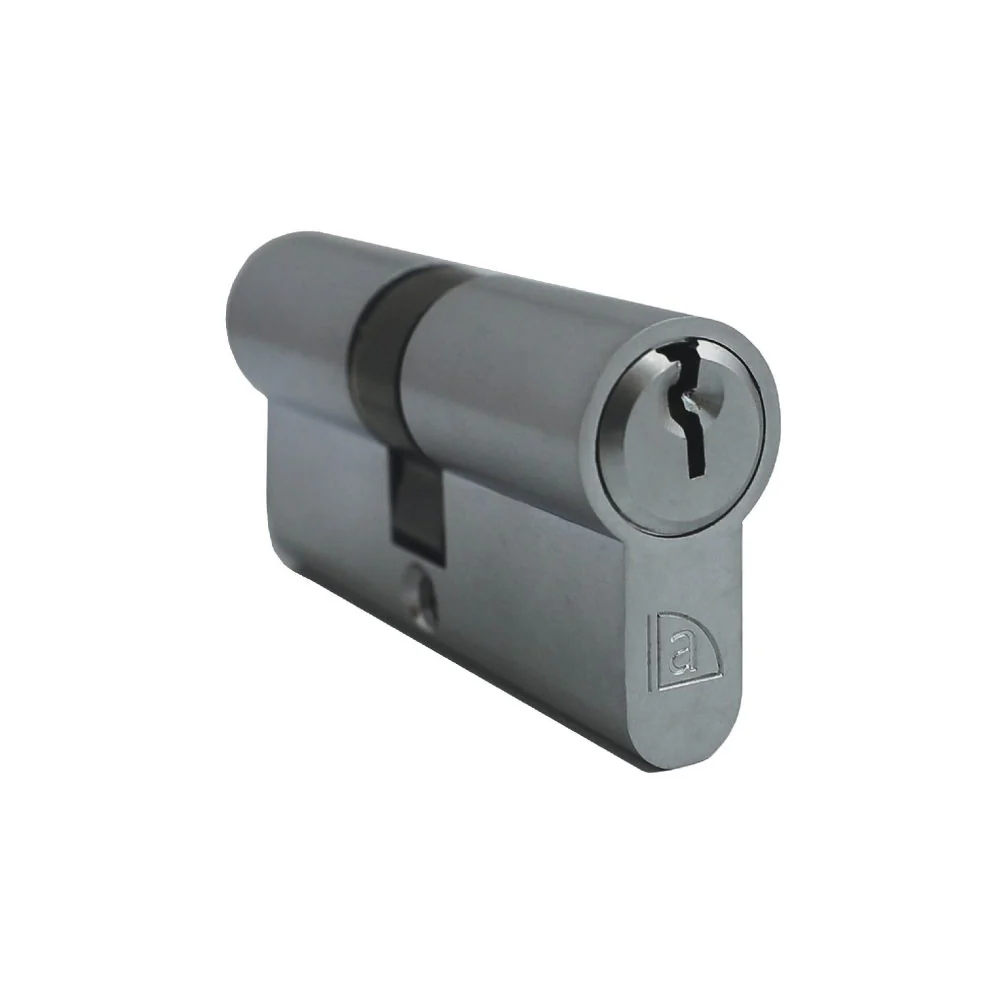

Austyle C4 5 Pin Euro Double Cylinder
49144

Features:

• Independent CAM Operation
• Australian Standard C4 Profile / 2 Keys Included
• Grub Screw Pins For Easy Re-keying

Specifications:

• Material: Solid Brass
• Keyway: C4 5Pin
• Size: 65mm
• Finish: Satin Chrome
