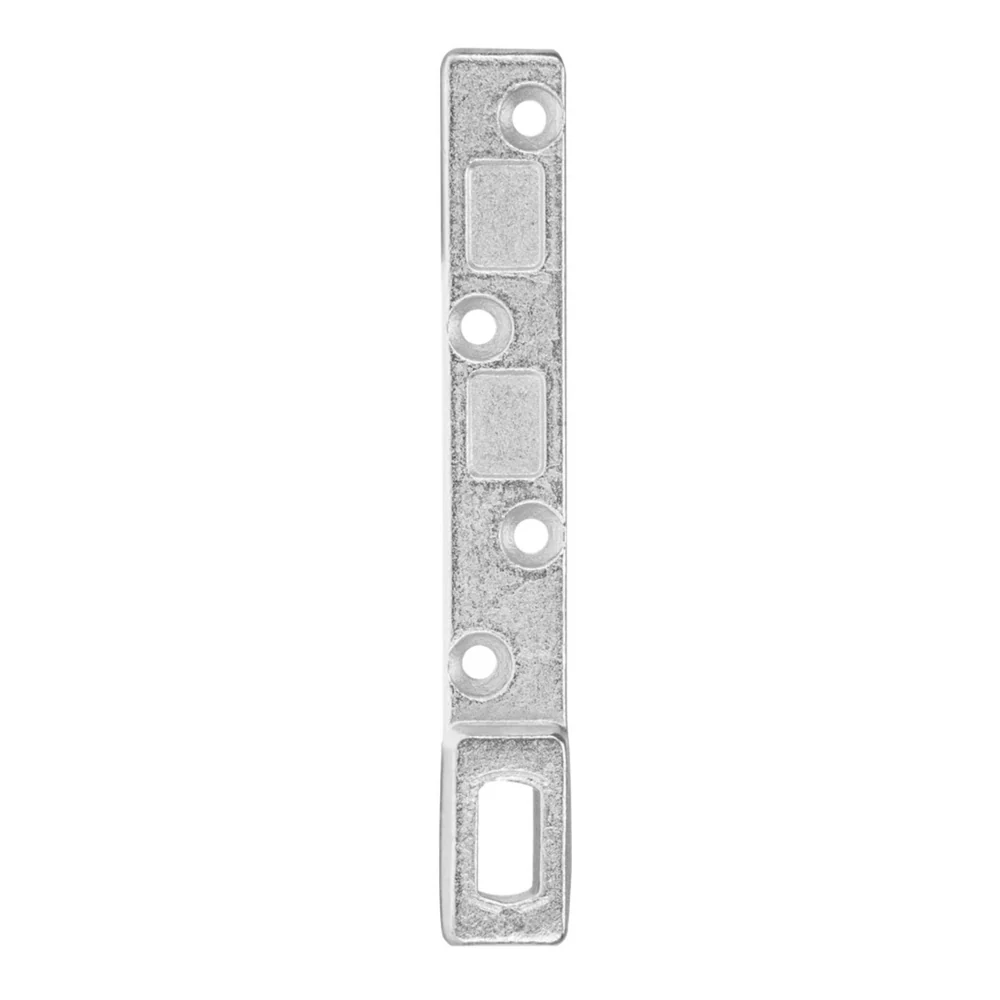

Lockwood 9800 Series Bottom Strap SP985-30

Lockwood 9800 Series Bottom Strap
SP985-30

Bottom Strap commonly used in commercial and fire-rated timber or aluminium pivot door systems.

Bottom Strap Function - secures and supports the bottom pivot assembly for heavy-duty 9800 Series door installations

Features:

• Designed as a heavy-duty bottom strap for the Lockwood 9800 Series Concealed Overhead Transom Door Closers, supporting pivot hardware
• Supports up to 200kg door weight when used with compatible pivot components
• Approved for fire-rated applications when used with the appropriate pivot/closer assembly
• Durable construction designed to withstand daily commercial use
• No finish (raw metal) - ready for on-site finishing or integration with other hardware
• Part of a modular pivot accessory system that delivers positive door control and alignment

Specifications:

• Maximum Supported Door Weight: Up to 200kg (when used with compatible pivot parts)
• Fire Rating: Yes - fire rated when part of a compliant pivot/closer system
• Material: Unfinished raw metal (finish applied on site if required)
• Intended Application: Bottom strap support in pivot door assemblies
