Lockwood 950 Series Glass Door Lever Set Satin Chrome Fire Rated 954SC

Lockwood 950 Series Glass Door Lever Set
954SC

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 10 business days after payment is made.

Glass Door Function:

• Outside key locks and unlocks both levers
• Inside key locks and unlocks both levers

Features:

• Commercial grade glass door leverset
• Key operated from both sides
• Both sides opened by lever when unlocked
• Key locks and unlocks both levers
• Levers and roses made of high purity zinc alloy
• Brass latch bolt with 13mm projection
• Fire rated to 2 hours
• Supplied with one-way screws for extra security

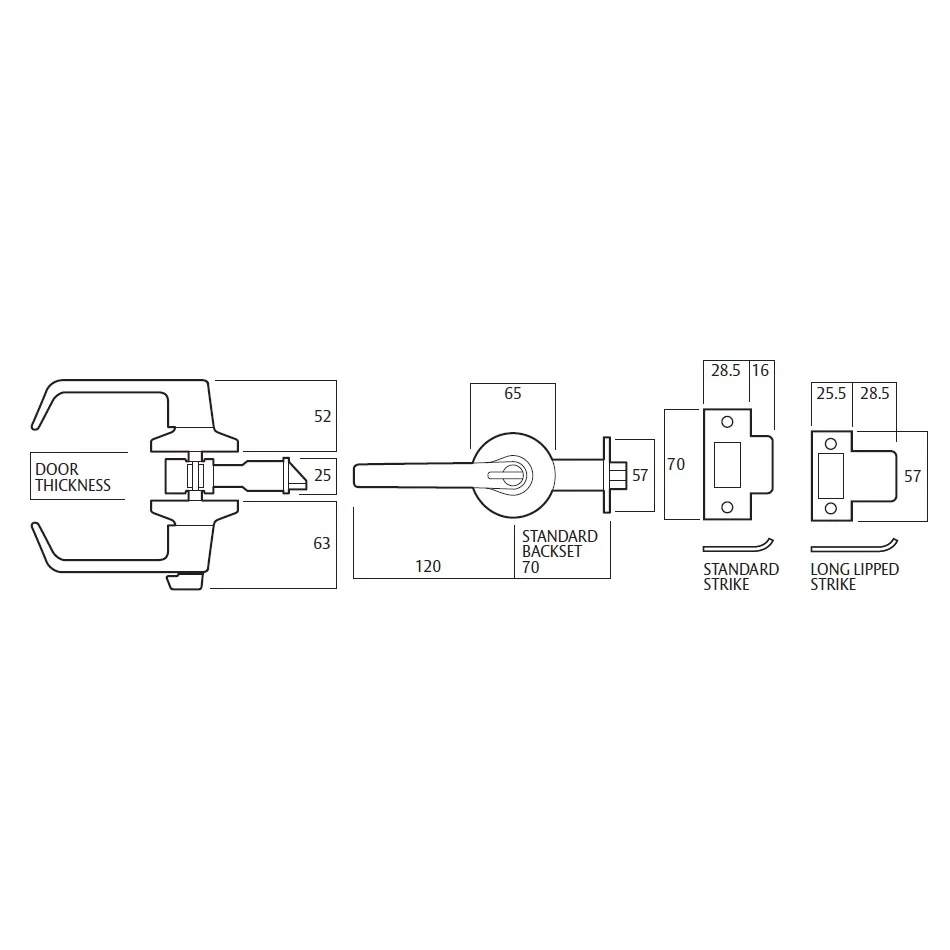

Specifications:

• Door Thickness: 35mm - 41mm
• Backset: 70mm
• Max. Projection: 52mm
• Strike: 70mm x 28.5mm x 1.2mm
• Latch: 70mm backset
• Latch face plate: 57mm x 25mm
• Cylinder: LW4 profile
• Door Handing: Field adjustable
• Rose: 65mm
• Finish: Satin Chrome

Accessories (sold separately):

• Lockwood Tubular Dead Latch 127mm (530-225SC)
• Lockwood Rebate Kit (530-9SC)
