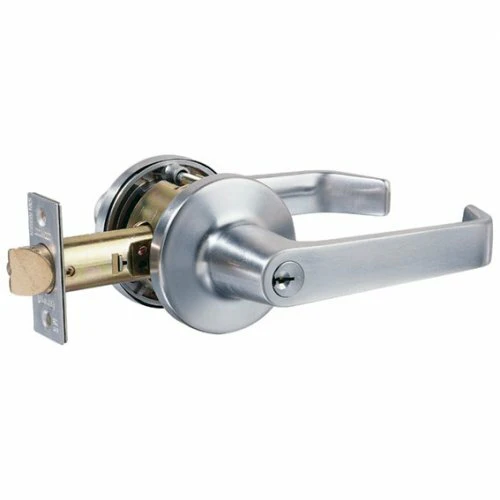

Lockwood 950 Series Entrance Escape Lever Set Satin Chrome Fire Rated KD 949SC

Lockwood 950 Series Entrance Escape Lever Set KA
949SC

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 10 business days after payment is made.

• Designed as a non handed, easy to install lockset. This top quality range is suitable for residential and commercial applications including office partitioning.

Entrance Escape Function:

• Outside key locks and unlocks outside lever
• Inside turnsnib locks and unlocks outside lever
• Inside opened by lever at all times

Features:

• Commercial grade exterior escape leverset
• Outside key locks and unlocks outside handle
• Inside opened by lever at all times
• Inside snib locks and unlocks outside handle
• Compatible with most restricted keying systems
• Levers and roses made of high purity zinc alloy
• Brass latch bolt with 13mm projection
• Fire rated to 2 hours

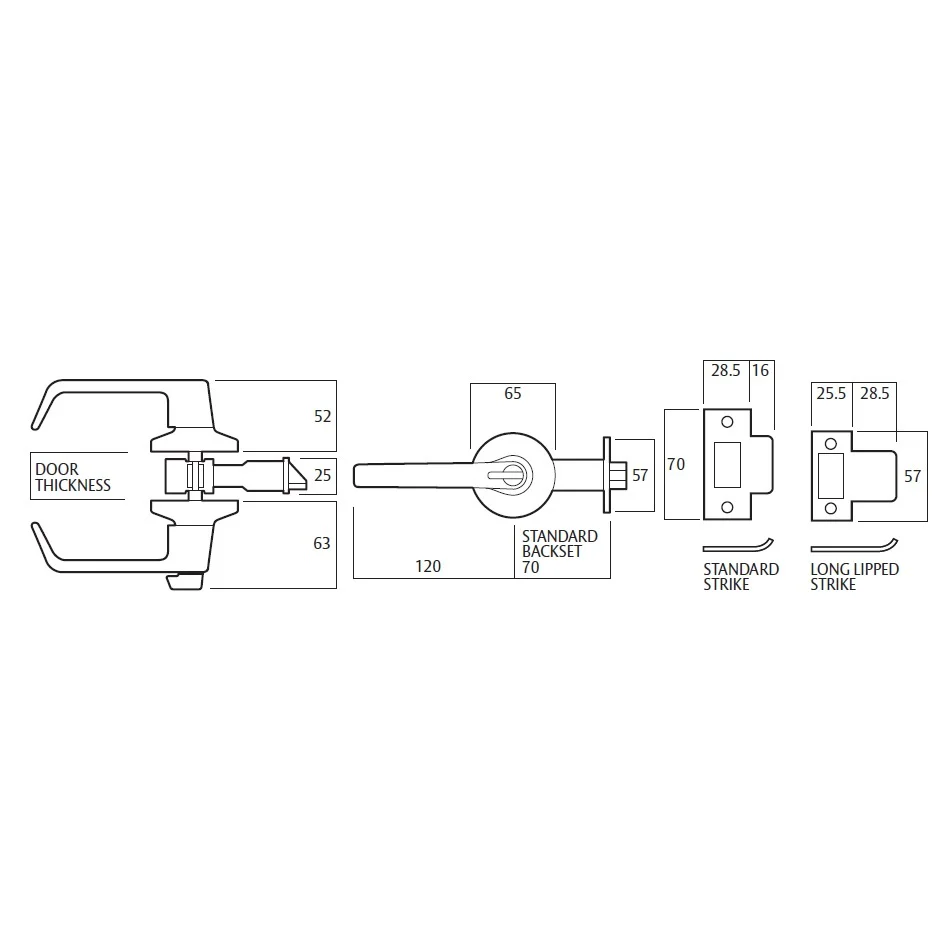

Specifications:

• Keying: Keyed alike
• Door Thickness: 32mm - 45mm
• Backset: 70mm
• Max. Projection: 52mm
• Strike: 70mm x 28.5mm x 1.2mm
• Latch: 70mm backset
• Latch Face Plate: 57mm x 25mm
• Cylinder: LW4 profile
• Door Handing: Field adjustable
• Rose: 65mm
• Finish: Satin Chrome

Accessories (sold separately):

• Lockwood Tubular Dead Latch 127mm (530-225SC)
• Lockwood Rebate Kit (530-9SC)
