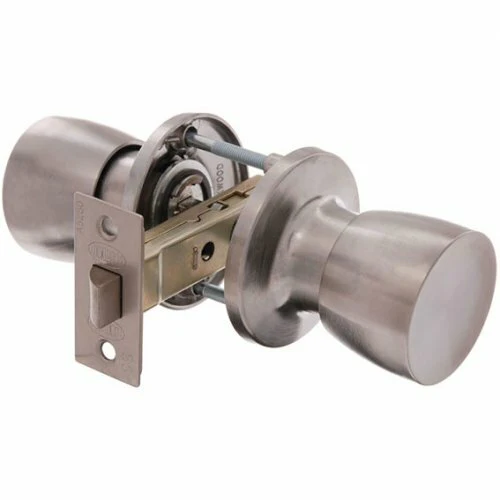

Lockwood 530 Series Passage Knob Set Satin Chrome Fire Rated 531SC

Lockwood 530 Series Passage Knob Set
531SC

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 10 business days after payment is made.

• Designed as a non handed, easy to install lockset. This top quality range is suitable for residential and commercial applications including office partitioning.

Passage Function: Opened by knob either side at all times.

Features:

• Commercial grade passage knobset
• Opened by knob either side at all times
• Brass latch bolt with 13mm projection
• Knobs and roses made of high purity zinc alloy
• Fire rated to 2 hours

Specifications:

• Door Thickness: 32-48mm
• Backset: 60mm
• Max. Projection: 61mm
• Strike: 70mm x 28.5mm x 1.2mm
• Latch: 60mm backset
• Latch Face Plate: 57mm x 25mm
• Door Handing: Non-handed
• Rose Diameter: 64mm
• Finish: Satin Chrome

Accessories (sold separately):

• Lockwood Tubular Dead Latch 127mm (530-225SC)
• Lockwood Rebate Kit (530-9SC)
