Kilargo IS7080si Compact Door Perimeter Seal - Available in Various Finishes and Sizes

Kilargo IS7080si Compact Door Perimeter Seal - Available in Various Finishes and Sizes

Kilargo IS7080si Compact Acoustic Perimeter Seal

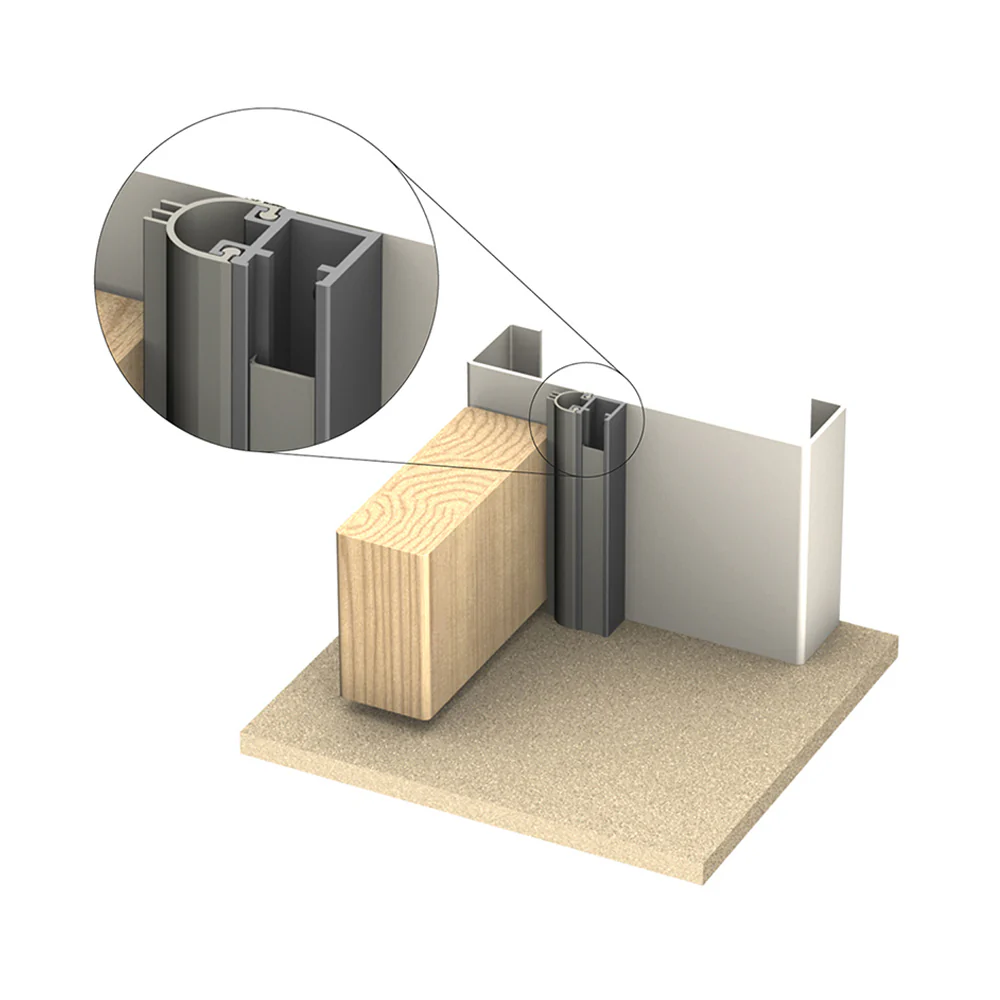

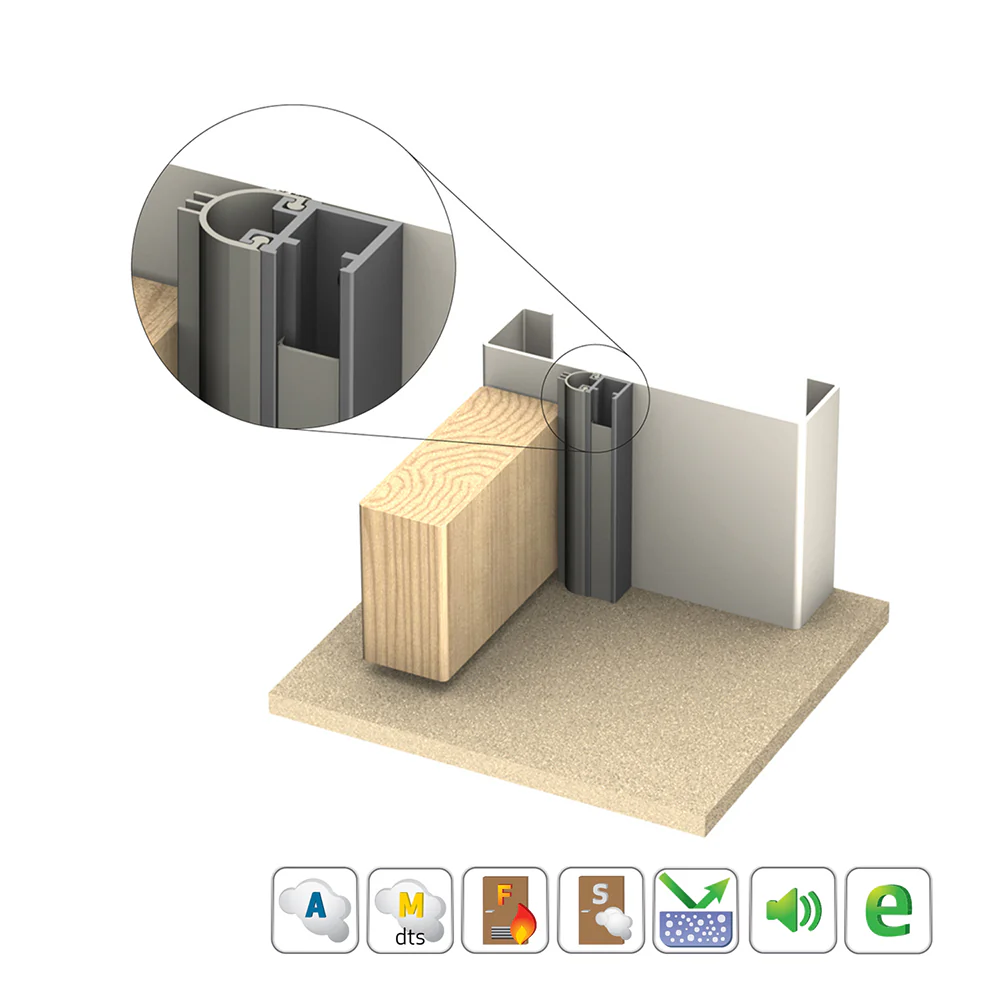

Perimeter Seal - can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

  • Aesthetically designed, compact perimeter seal, proven to be an effective acoustic, cold smoke, light and weather seal.
  • Can be installed in lieu of a door stop on both steel and timber door frames (where frames are non fire-rated).
  • The fixing holes are pre-drilled and slotted to allow the seal to be adjusted and positioned accurately.
  • A decorative cover strip is supplied to conceal fixings.
  • Has been successfully tested on proprietary fire door assemblies (mounted on a 25mm frame stop).

Specifications:

  • Gap Size: Min. 0mm / max. 10mm
  • Fixing: Rebated frames of single doors, specify a long back set door latch
  • Available Sizes: 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3250mm, 3500mm, 3750mm, 4000mm, 4250mm, 4500mm, 4750mm and 5000mm
    • Available Finish:
      • Clear Anodised
      • Black Anodised

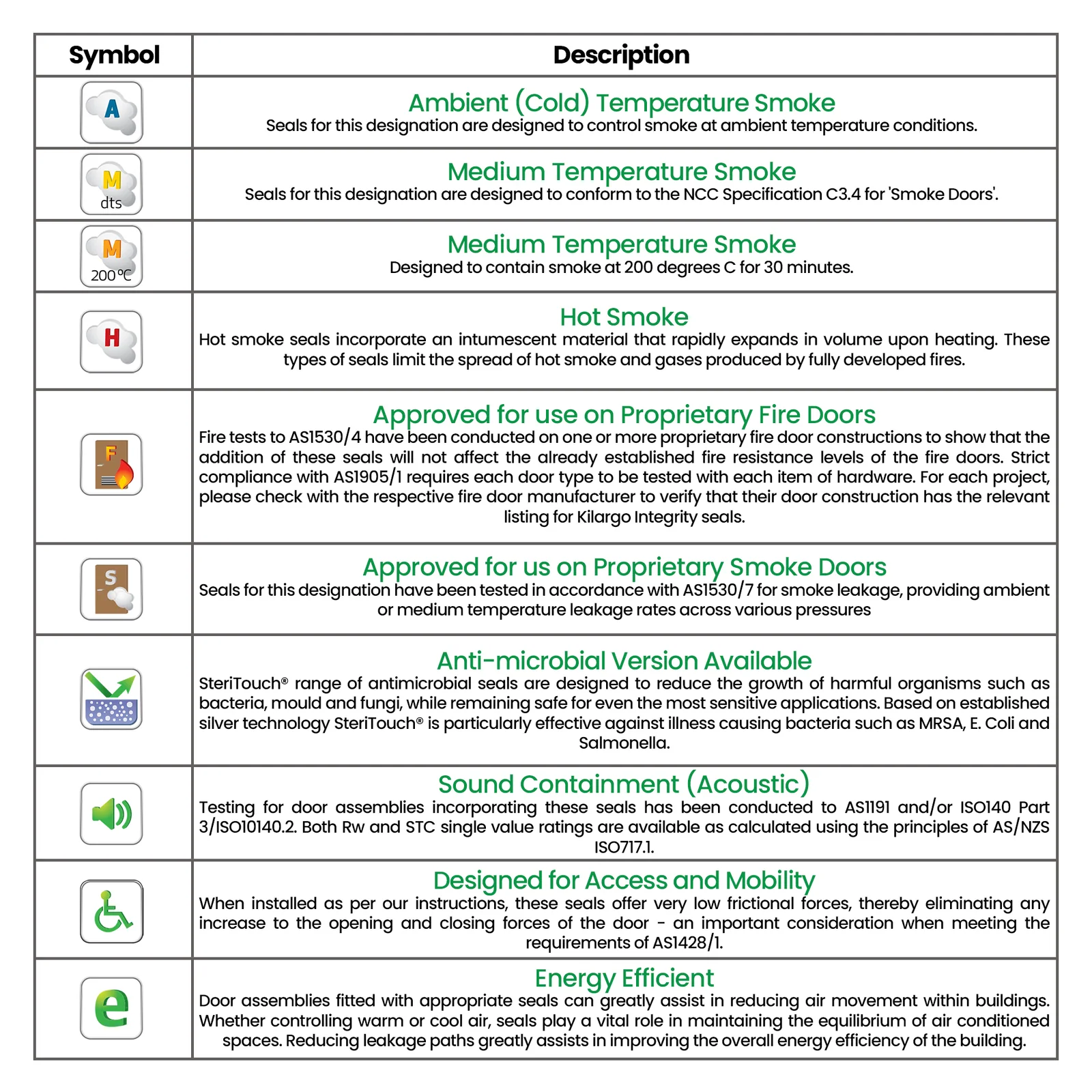

    Approvals:

    • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
    • Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
    • Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
    • Conforms with BCA Specification C3.4 smoke sealing requirements
    • Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
    Select Size
    Select Colour or Finish
    Select Anti-microbial
    From $10.50

    Original: $35.01

    -70%
    Kilargo IS7080si Compact Door Perimeter Seal - Available in Various Finishes and Sizes—

    $35.01

    $10.50

    Product Information

    Shipping & Returns

    Description

    Kilargo IS7080si Compact Acoustic Perimeter Seal

    Perimeter Seal - can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

    Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

    Features:

    • Aesthetically designed, compact perimeter seal, proven to be an effective acoustic, cold smoke, light and weather seal.
    • Can be installed in lieu of a door stop on both steel and timber door frames (where frames are non fire-rated).
    • The fixing holes are pre-drilled and slotted to allow the seal to be adjusted and positioned accurately.
    • A decorative cover strip is supplied to conceal fixings.
    • Has been successfully tested on proprietary fire door assemblies (mounted on a 25mm frame stop).

    Specifications:

    • Gap Size: Min. 0mm / max. 10mm
    • Fixing: Rebated frames of single doors, specify a long back set door latch
    • Available Sizes: 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3250mm, 3500mm, 3750mm, 4000mm, 4250mm, 4500mm, 4750mm and 5000mm
      • Available Finish:
        • Clear Anodised
        • Black Anodised

      Approvals:

      • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
      • Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
      • Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
      • Conforms with BCA Specification C3.4 smoke sealing requirements
      • Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
