Kilargo IS3017si Sweep Action Blade Seal - Available in Various Sizes

Kilargo IS3017si Sweep Action Blade Seal - Available in Various Sizes

Kilargo IS3017si Sweep Action Blade Seal

Sweep Seal with a weatherstripping door seal strip installed, you'll save money on heating and cooling while also protecting against moisture, dust, and insects.

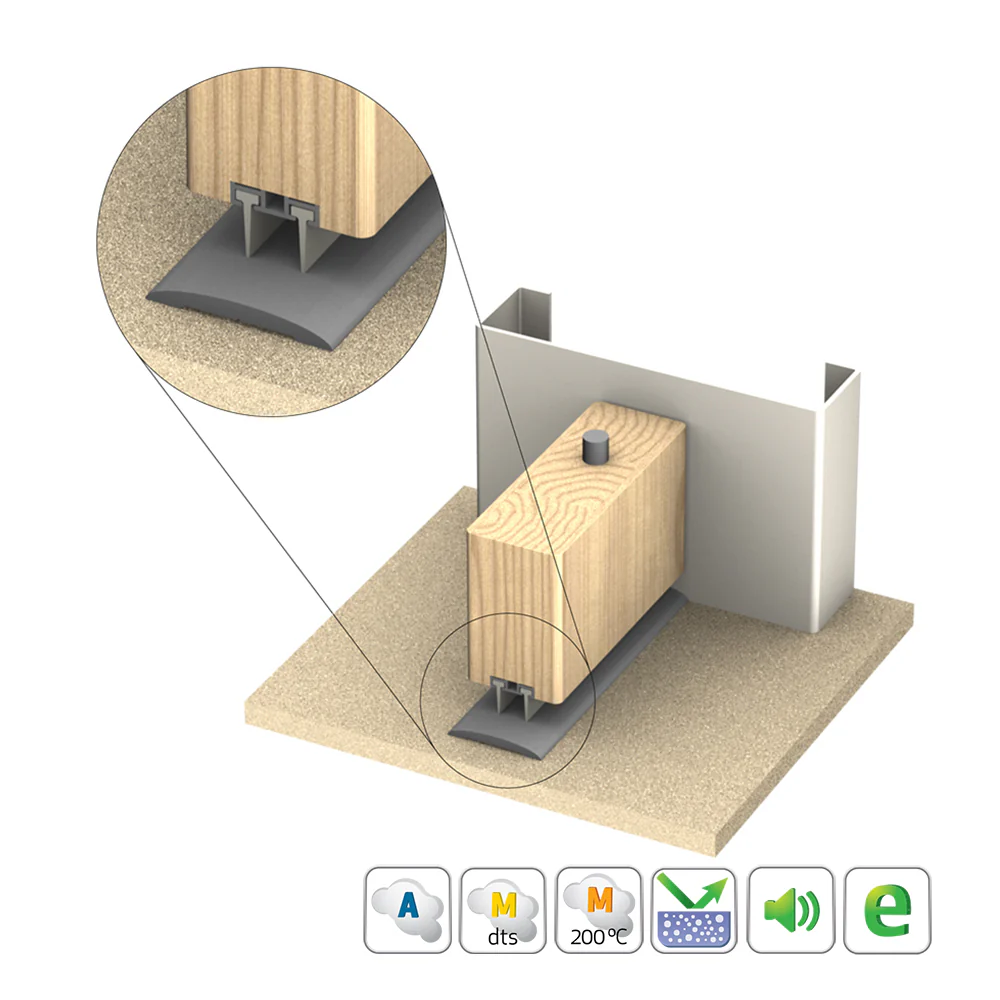

Sweep Seal Function - seals the gap between the door's bottom and the threshold.

Features:

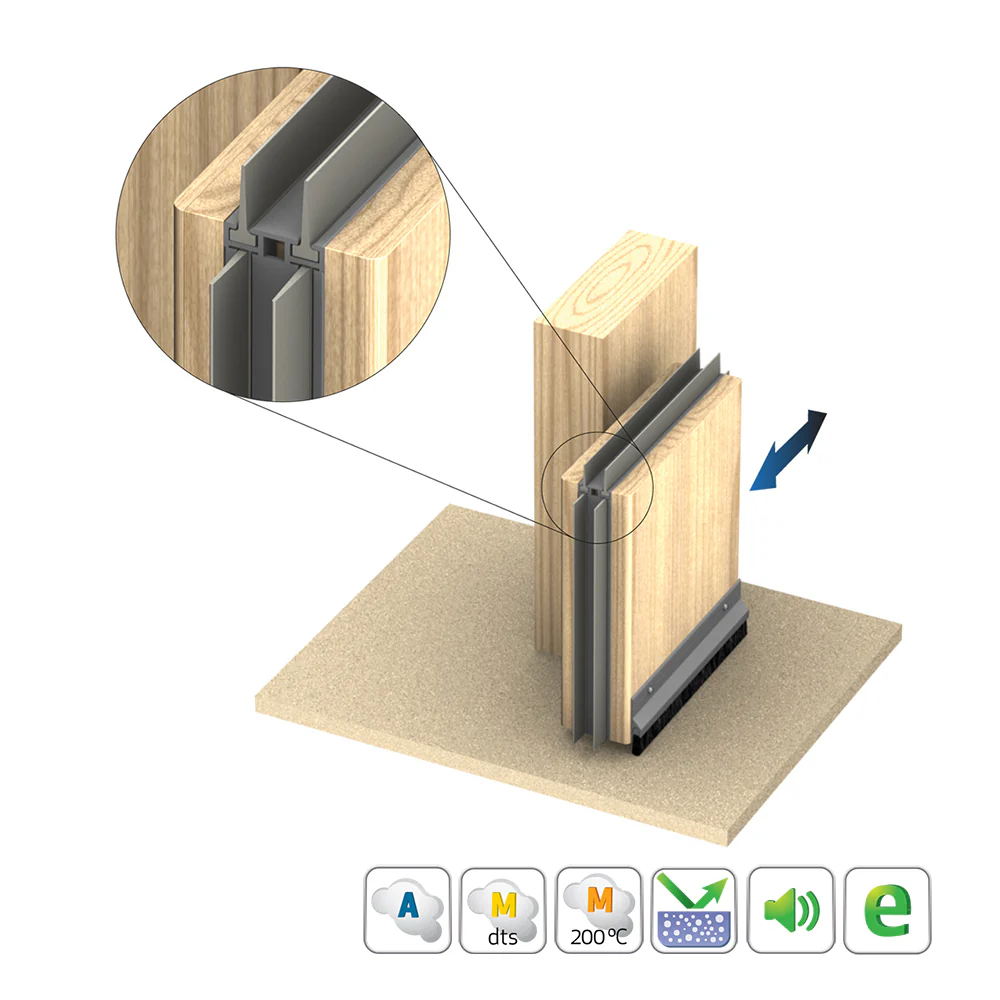

  • With high performance silicone rubber fins, which can be fitted to door bottoms or perimeters of single and double action doors
  • This seal may be surface mounted or rebated into doors to allow for depth adjustment as required
  • This seal provides effective containment against dust, light, weather and vermin, and is an ideal smoke seal for pivot door assemblies

Specifications:

  • Gap Size: Min. 8mm / Max. 12mm (allowing for the aluminium carrier to be recessed)
  • Available Sizes: 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3250mm, 3500mm, 3750mm, 4000mm, 4250mm, 4500mm, 4750mm and 5000mm
  • Finish: Clear Anodised
  • Fixing:
    • Timber fixing screws are supplied with detailed fitting instructions
    • Fixing holes are pre-drilled to allow the seals to be positioned accurately

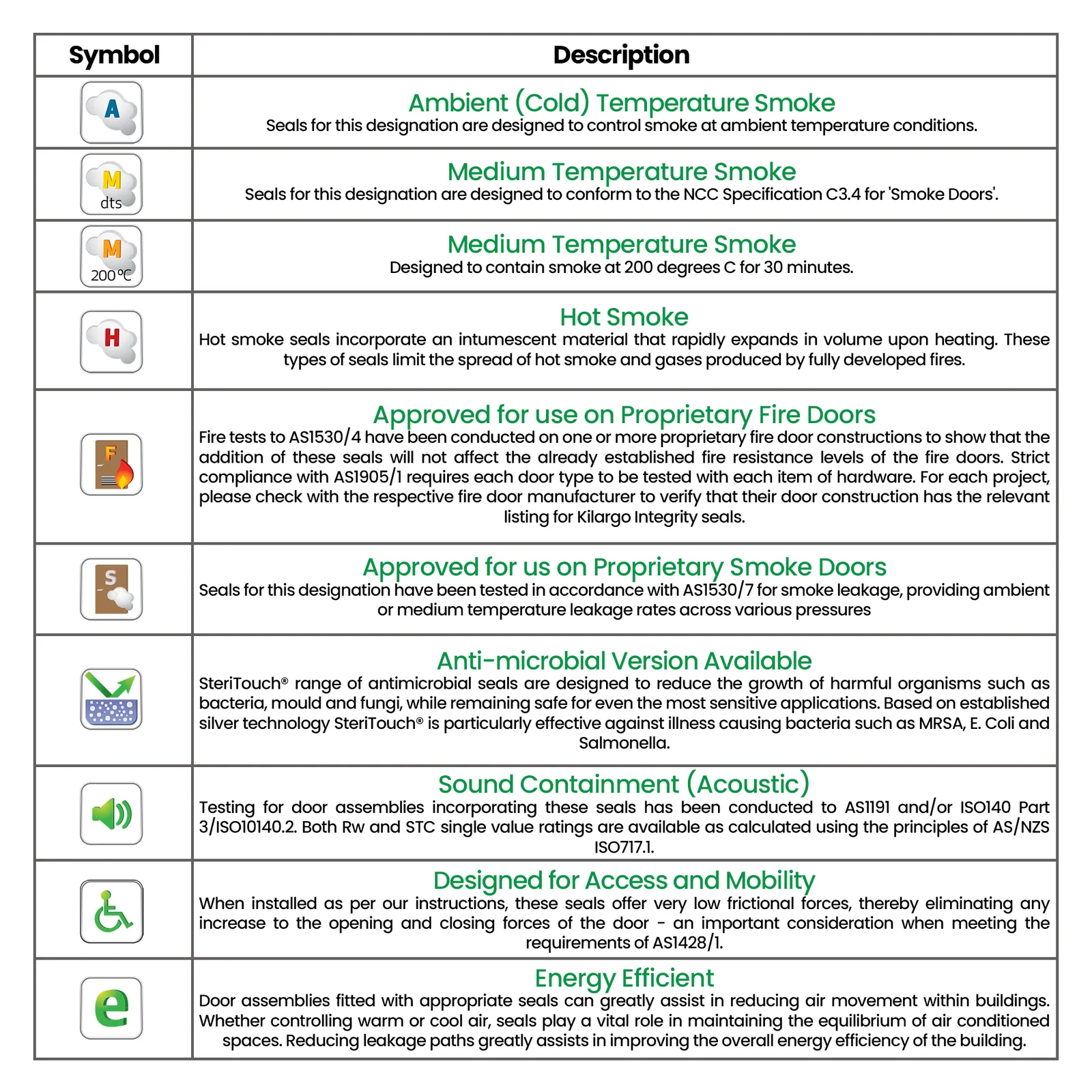

Approvals:

  • Conforms to BCA Specification C3.4 smoke sealing requirements
  • Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
Select Size
Select Anti-microbial
From $8.43

Original: $28.10

-70%
Kilargo IS3017si Sweep Action Blade Seal - Available in Various Sizes—

$28.10

$8.43

Product Information

Shipping & Returns

Description

Kilargo IS3017si Sweep Action Blade Seal

Sweep Seal with a weatherstripping door seal strip installed, you'll save money on heating and cooling while also protecting against moisture, dust, and insects.

Sweep Seal Function - seals the gap between the door's bottom and the threshold.

Features:

  • With high performance silicone rubber fins, which can be fitted to door bottoms or perimeters of single and double action doors
  • This seal may be surface mounted or rebated into doors to allow for depth adjustment as required
  • This seal provides effective containment against dust, light, weather and vermin, and is an ideal smoke seal for pivot door assemblies

Specifications:

  • Gap Size: Min. 8mm / Max. 12mm (allowing for the aluminium carrier to be recessed)
  • Available Sizes: 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3250mm, 3500mm, 3750mm, 4000mm, 4250mm, 4500mm, 4750mm and 5000mm
  • Finish: Clear Anodised
  • Fixing:
    • Timber fixing screws are supplied with detailed fitting instructions
    • Fixing holes are pre-drilled to allow the seals to be positioned accurately

Approvals:

  • Conforms to BCA Specification C3.4 smoke sealing requirements
  • Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
