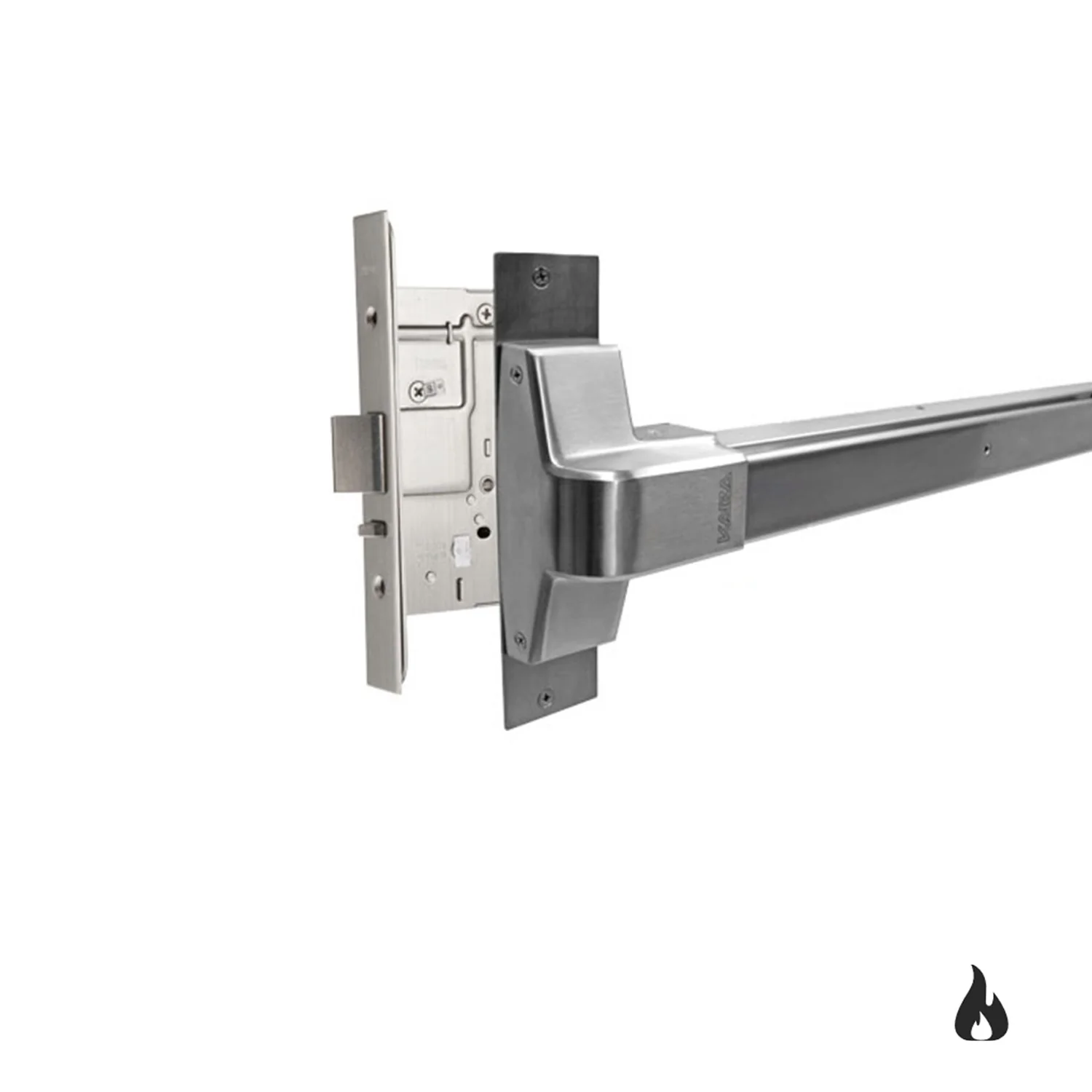

Dormakaba Exit Only Mortice Lock Fire Rated Satin Stainless Steel 1060mm ED22MFSSS

Dormakaba Exit Only Mortice Lock Fire rated
ED22MFSSS

Panic Exit Device provide a fast and convenient means of escape in the case of an emergency.

Panic Exit Device Function - Operated by a horizontal push bar, which when pushed in a downward arc withdraws either the bolts or latch, releasing the door for immediate escape in the event of an emergency.

Features:

• Horizontal fitting

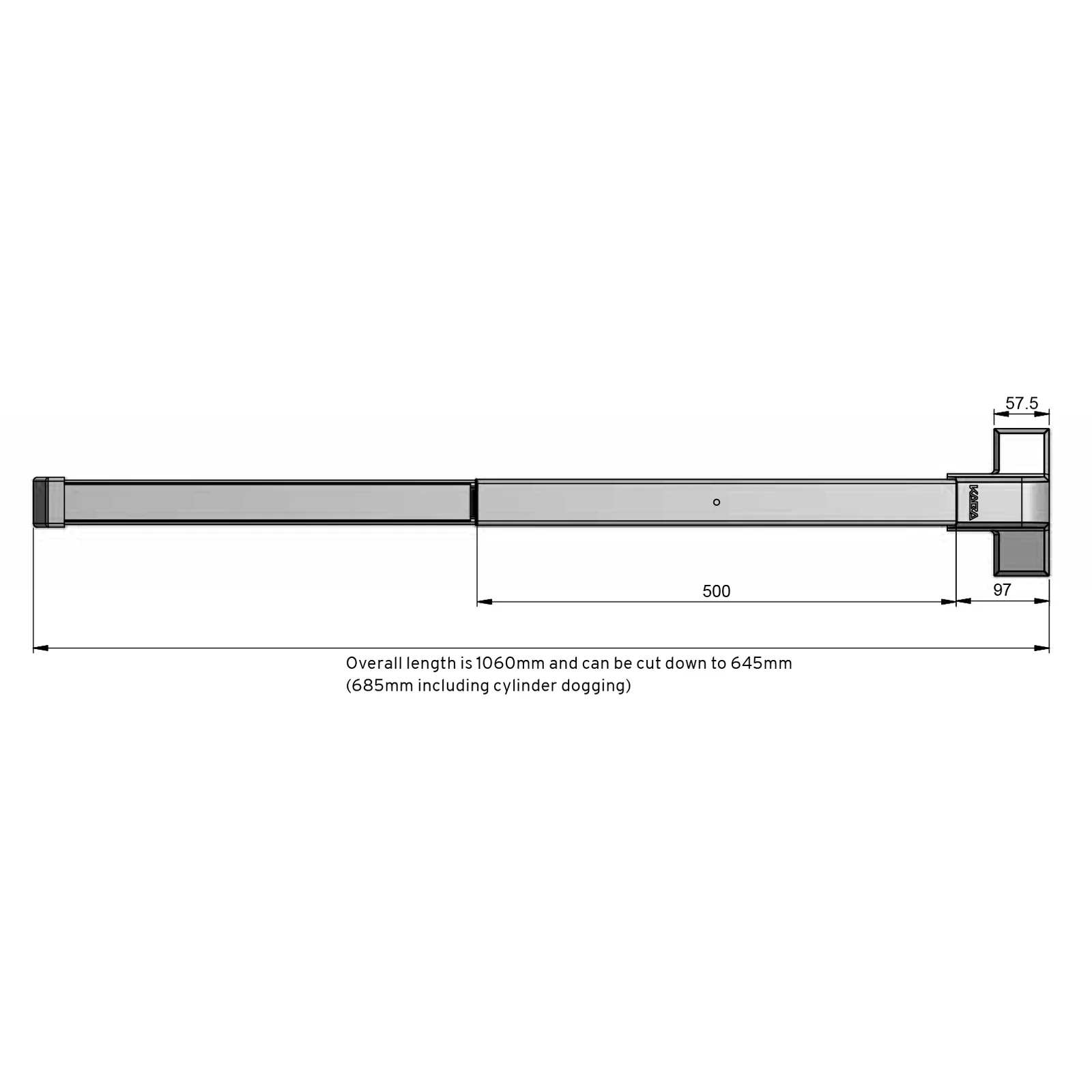

• Supplied in 1060 mm standard length
• Can be field sized to 645 mm minimum length
• Supplied complete with mortice lock (MS2ED)
• Mounting plates and thru fixing screws (supplied)
• Field selectable handing

Specification:

• Material: Stainless Steel
• Door Thickness: 35mm - 50mm
• Length: 1060mm
• Locking Mode: Locking - Horizontal With Mortice Lock
• Has Dogging: No
• Finish: Satin Stainless Steel

Fire Rating:

• Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Note: Fire doors cannot include dogging due to fire regulations.
