Dormakaba 950 Mortice Door Lock 950L-22SCP-C4 Short Backset 22mm Bolt Escape Turn

Dormakaba 950 Series Mortice Lock & Escape Turn
950L-22SCP-C4

950 Series locks are non-handed and are suitable for narrow stile hinged or pivoted doors. The deadbolt is locked by either key or turn. Also suitable for sliding doors where lock can be mounted to door jamb and deadbolt engages strike mounted to face of door.

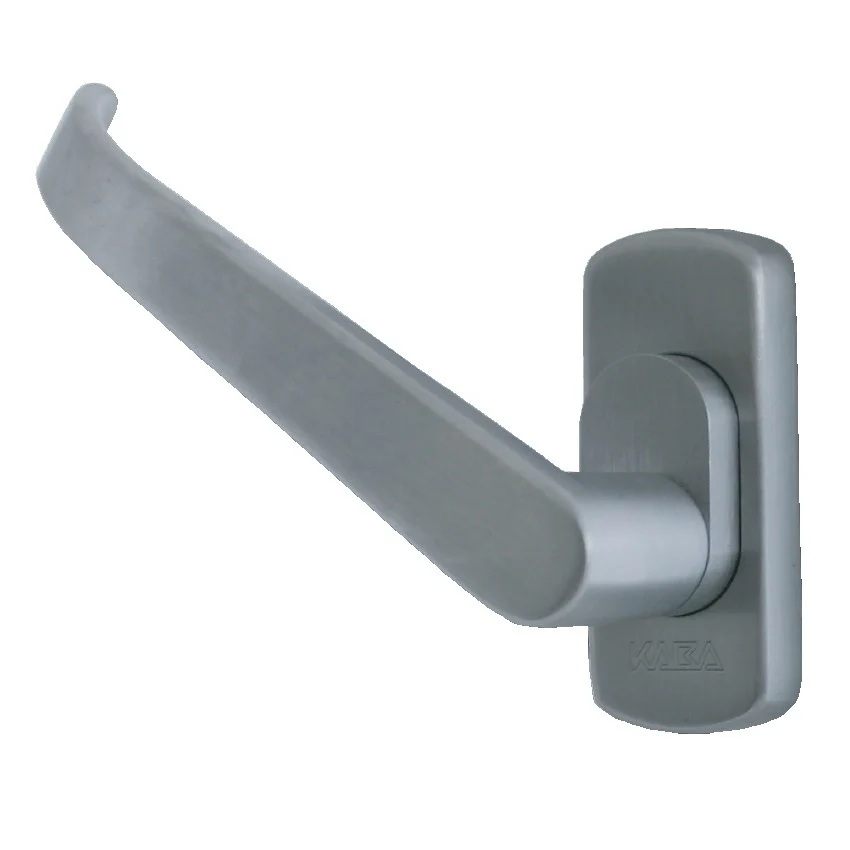

Dormakaba has released the SB312 case fixed turn escape lever to suit the 950 and 951 range of narrow style backset locks.

Includes:

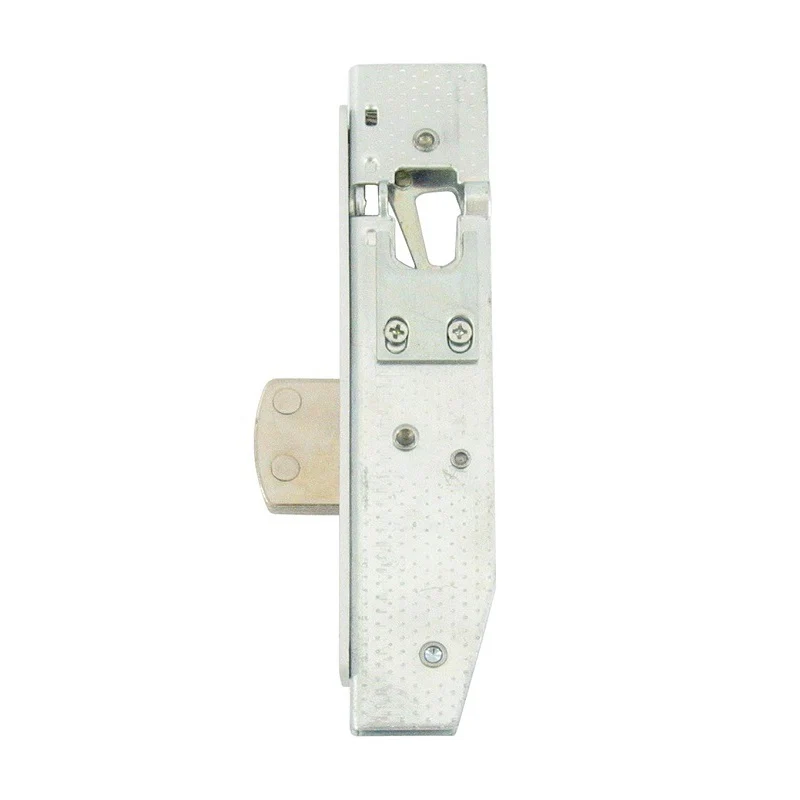

• 1x 950 lock body 22mm bolt
• 1x Case fixed turn escape lever
• 1x Escutcheon
• 1x Cylinder

SB312 Features:

• Suits 950/951 range of narrow backset locks
• Surface fixed escutcheon (FA950) provides stability by clamping on cylinder and also face fixing to door - supplied as standard
• Retro-fits to all common manufacturers locks in market
• Single action downward lever operation to unlock door meets BCA/NCC requirements of egress for exit doors
• Lever design meets AS1428.1 Design for Access and Mobility when fitted to standard aluminium extrusion of
• 45mm thick style
• Patented mechanism provides travel restriction to prevent lock damage
• Handed installation is field reversible
• Satin chrome finish
