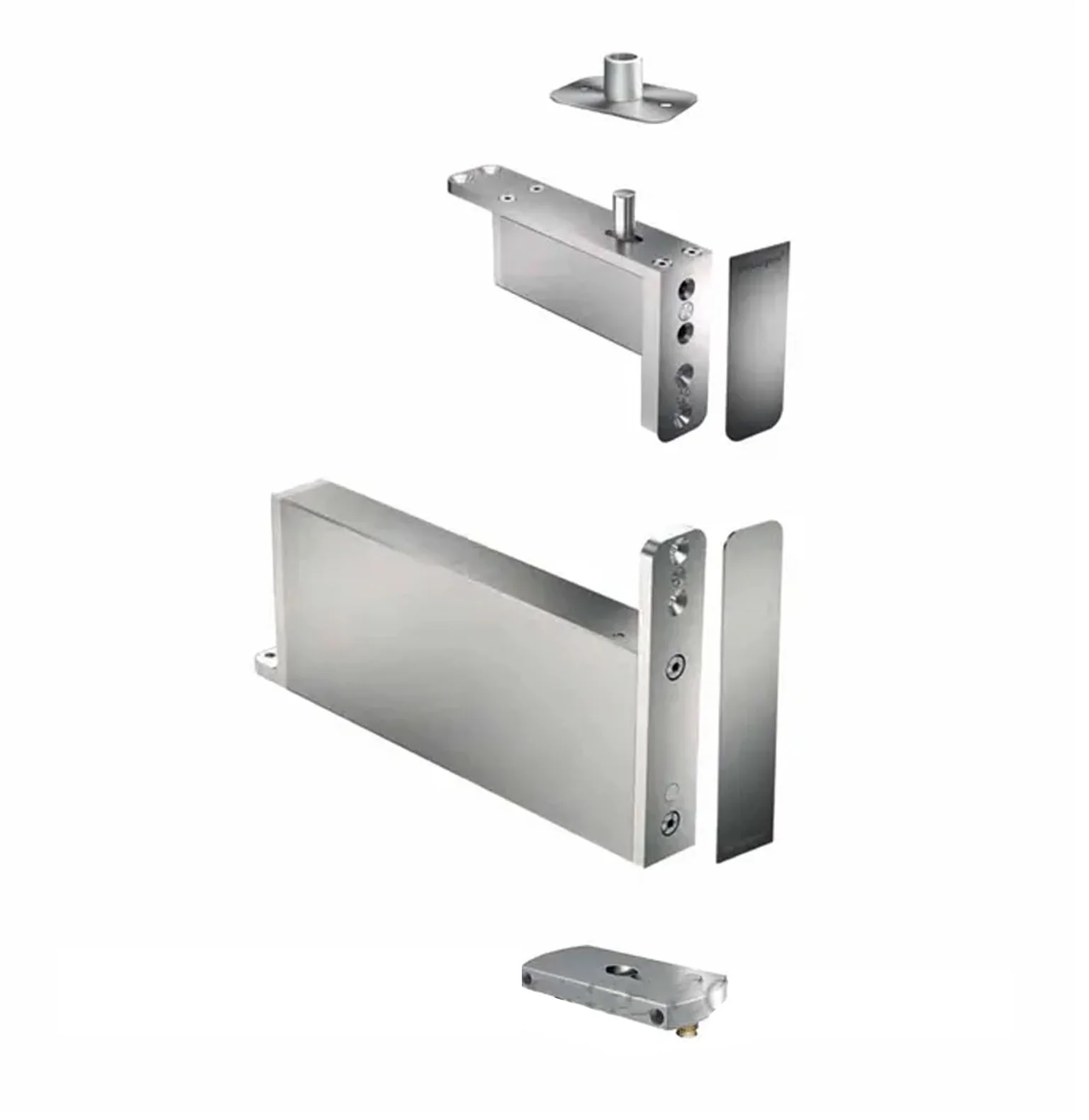

FritsJurgens Full Kit System M+A | 40mm Min Pivot Point Squared Floor Plate Satin Stainless Steel FJS/STM+40ASSS

FritsJurgens Full Kit
FJS/STM+40ASSS

Pivot Sets are commonly used for large and heavy doors that could pose challenges for traditional hinge systems. These doors might include oversized commercial doors, industrial doors, and entrance doors in public buildings.

Pivot Set Function - used to facilitate the rotation or pivoting of doors around a vertical axis. Pivot sets are designed to enable doors to swing smoothly and efficiently while providing stability and support. They are often used in situations where traditional hinges may not be suitable due to the size, weight, or design of the door.

Features:

• System M is an adjustable, self-closing pivot hinge
• It provides Latch Control to ensure proper latching, guaranteed control over the movement of doors from 20 kg to 500 kg, and extra adjustability for the movement of the door
• Supplied with Fixings

Specifications:

• Material: Stainless Steel 420 Surgical Grade, Anodised Aluminium
• Maximum Door Height: Unlimited
• Maximum Door Width: 440mm To 1439mm
• Door Rotation:
  • Double-acting: 180 degrees
  • Single-acting: 90 degrees
• Hold Positions: 90 degrees
• Door Thickness: 40mm (minimum)
• Maximum Door Weight: Class A 20kg to 119kg
• Pivot Point: 40mm
• Hold Open: Standard
• Finish: Satin Stainless Steel
