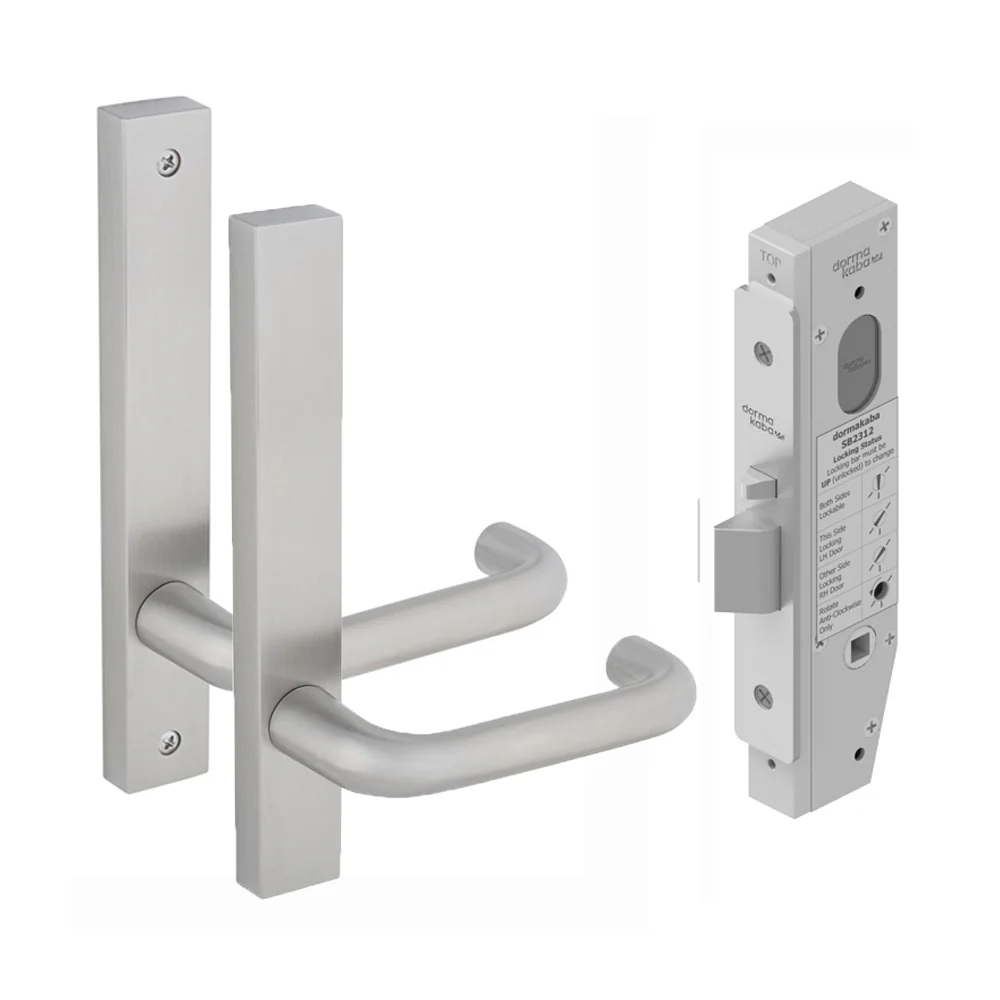

Dormakaba Passage Lockpack 30mm Backset with End Plate Furniture Satin Stainless Steel SB2312KIT55SS

Dormakaba Passage Lockpack with Stainless Steel Furniture
SB2312KIT55SS

Passage ideal for interior hallways, closets, and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

Includes:

• 1 x Dormakaba Mortice Door Lock 30mm Short Backset Includes Turn Snib (SB2312SSS)
• 1 x Dormakaba Lever on Narrow Style Square End Plate Visible Fix Satin Stainless Steel (6406/30G)
• 1 x Dormakaba Lever on Narrow Style Square End Plate No Cylinder Hole Concealed 316G Satin Stainless Steel (6405/30G)



Dormakaba Mortice Door Lock 30mm Short Backset Includes Turn Snib
SB2312SSS

Features:

• Operated by key or handle outside or by turnsnib, key or handle inside
• Cylinder or handle retracts the latch
• 15 mm stainless steel reversible latchbolt
• Stainless steel faceplate and strike
• Easily adapted to most function
• Supplied with turn snib adaptor
• Supplied less cylinder
• Compatible to most restricted keying systems
• Electric strike compatibility

Specifications:

• Door Thickness: 32mm - 50mm
• Anti-lockout Function: No
• Compatible With Most Restricted Keying Systems: Yes
• Holdback Function Built-in: No
• Lock Grade: Commercial
• Backset: 30mm
• Finish: Satin Stainless Steel



Dormakaba Lever on Narrow Style Square End Plate No Cylinder Hole Concealed 316G SS
6405/30G

Features:

• Designed for use with dormakaba DKSB2212SSS series locks.
• BCA AS1428.1 -2009 compliant leversets
• Narrow exterior square end plate
• Plain plate with Noosa 30 series lever
• Disabled access AS1428.1 compliant lever
• Manufactured using 316 corrosion resistant solid stainless steel
• Concealed fixing
• Plates are designed to fit back to back
• External plates supplied with fixing screws

Specifications:

• Length: 185mm
• Width: 26mm
• Depth: 12.7mm
• Door Thickness: 32mm - 50mm
• Screw Fixing Centres: 160mm
• Internal / External: External
• Material: 316 Stainless Steel
• Plate Has A Lever: Yes
• Plate Has Oval Cylinder Hole: No
• Finish: Satin Stainless Steel



Dormakaba Lever on Narrow Style Square End Plate
6406/30G

Features:

• Designed for use with dormakaba DKSB2212SSS series locks
• BCA AS1428.1 -2009 compliant leversets
• Narrow interior square end plate
• Plain plate with Noosa 30 series lever
• Disabled access AS1428.1 compliant lever
• Manufactured using 316 corrosion resistant solid stainless steel
• Visible fixing
• Plates are designed to fit back to back

Specifications:

• Length: 185mm
• Width: 26mm
• Depth: 12.7mm
• Door Thickness: 32mm - 50mm
• Screw Fxing Centres:160mm
• Internal / External: Internal
• Plate Type: Narrow Style Square End
• Material: 316 Stainless Steel
• Plate Has A Lever: Yes
• Finish: Satin Stainless Steel
