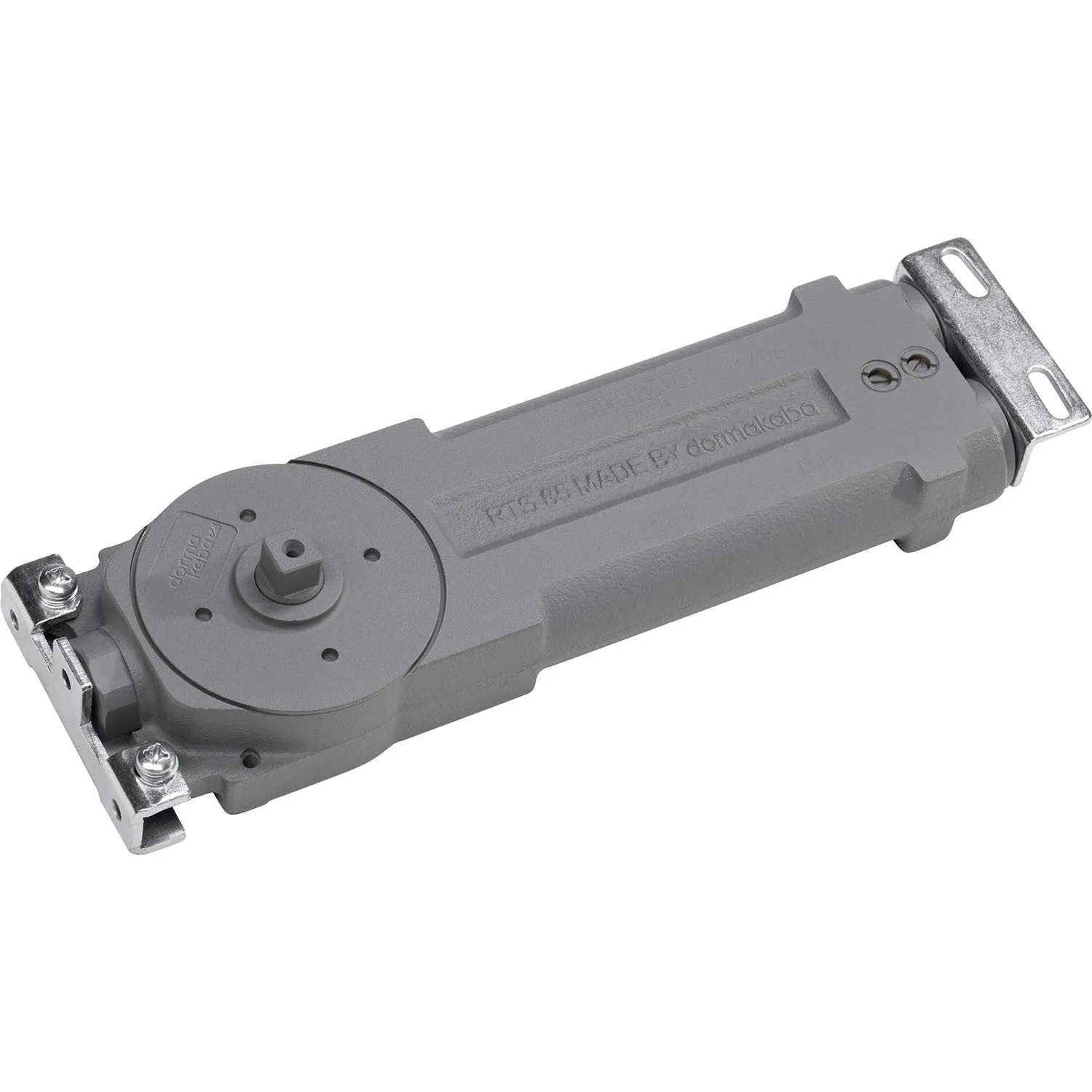

Dormakaba Transom Door Closer EN3 Non Hold Open Body Only RTS85

Dormakaba Transom Door Closer EN3 Non Hold Open Body Only
85311101

Transom Closer allows a single or double action aluminium door or doors to be closed with precision.

Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.

• For single and double action doors RH (ISO 5) and LH (ISO 6)
• Offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door.
• Certified to ISO 9001.

Features:

• For single and double action doors
• Backcheck function as standard
• Wide range of accessories for almost every configuration
• Concealed in the door frame

Specifications:

• Length: 323mm
• Width: 90mm
• Height: 38mm
• Weight: 4.7kg
• Max Door Width: 950mm
• Max Door Weight: 110kg
• Max Opening Angle: 130 degrees
• Closing Force: EN3
• Internal Doors Max: 950mm
• Closing Speed Variable Valve Adjustment: Yes
• Final Closing Speed Variable Valve Adjustment: Yes
• Backcheck: Yes
• Protection:
  • Certified manufactur to ISO 9001.
  • Certification CE marked.
  • Successful independently tested to BS EN 1154
