Dormakaba RTS85 EN3 90 Degrees Transom Closer Hold Open For Aluminium Door RTS853A90

Dormakaba RTS85 EN3 90 Degrees Transom Closer Hold Open For Aluminium Door
RTS853A90

Transom Closer is used to ensure automatic door closing for energy efficiency, security, accessibility, and noise reduction in various settings.

Transom Closer Function - automatically close the door after it has been opened, ensuring that the door remains closed and latched, even when left unattended.

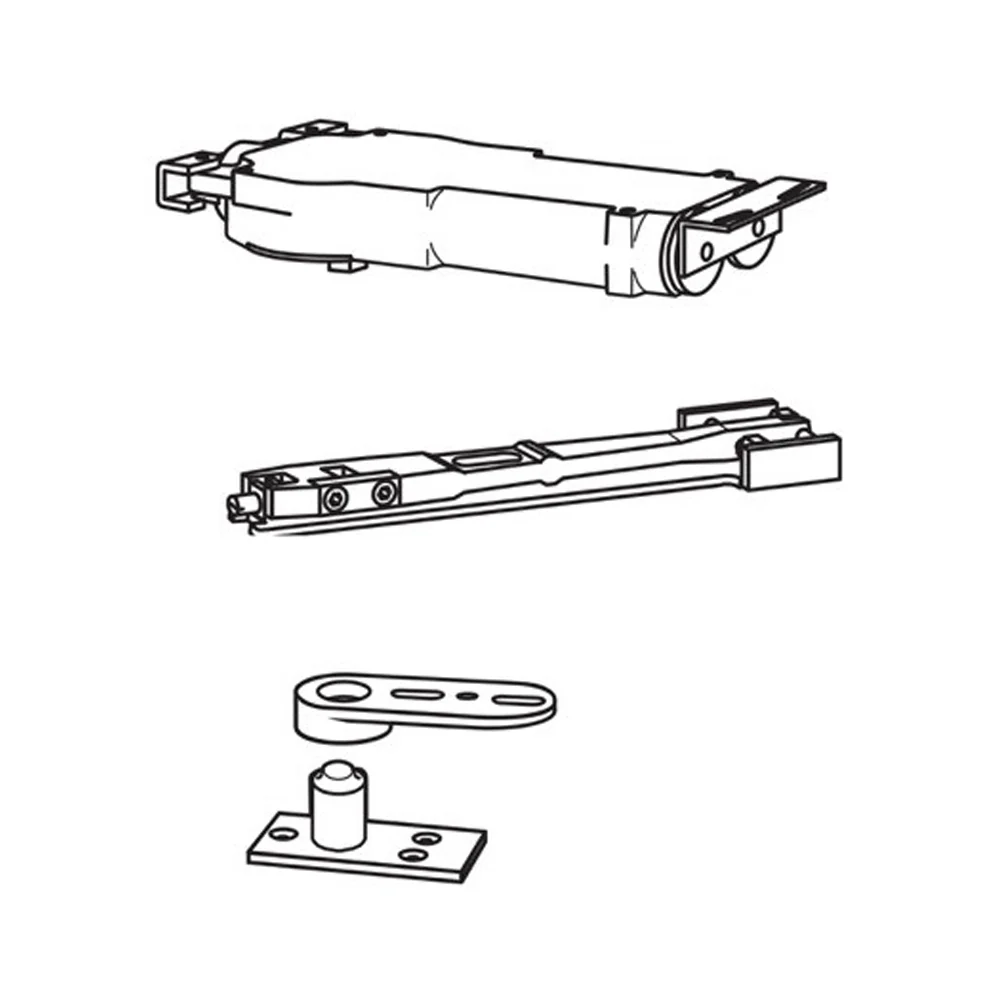

Includes:

• 1 x RTS85 Size 3 90 Degree Hold Open Transom Closer body
• 1 x 8530 Side Load Arm
• 1 x 8551 Bottom Pivot

Features:

• Offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door
• The majority of preparation can be accomplished by the fabricator prior to installation, leaving minimal on-site work
• A complete line of accessories is available to accommodate virtually any door and frame confguration
• Hold Open Aluminum Combi Packs
• Suggested Aluminium door package
• 90 Degrees

Specifications:

• Material: Cast Iron Construction
• Maximum Weight: 110kg
• Maximum Width External Use: 950mm
• Maximum Width Internal Use: 950mm
• Opening Angle: 130 Degrees (Maximum)
• Pivot Point: 65mm Tempered Glass Doors, 70mm Single / Double Doors

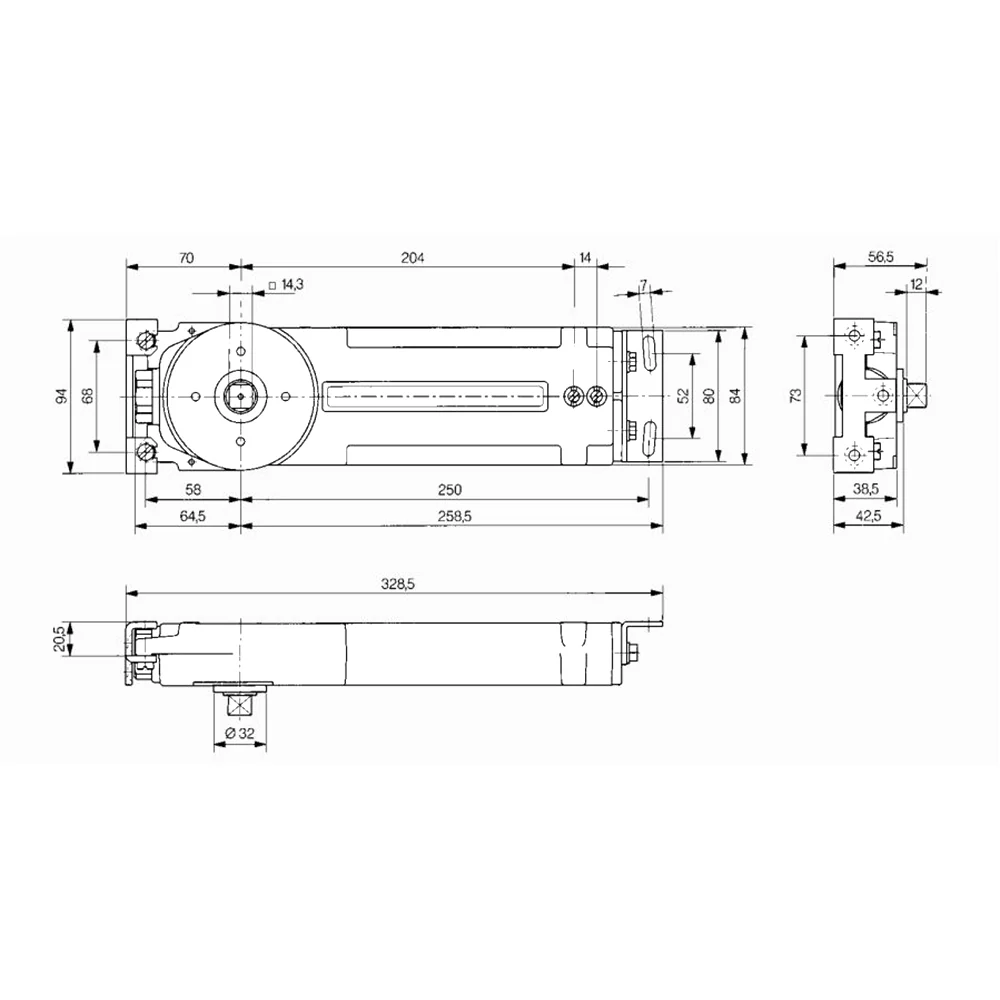

• RTS85 Dimensions: 323mm x 90mm x 38mm
• Finish: Silver

Note: If the door has an opening angle exceeding 105 degrees, door stop is recommended.
