Brava Metro Glass Door Knob Set EA3811PSS70 Fire Rated 70mm Backset PSS

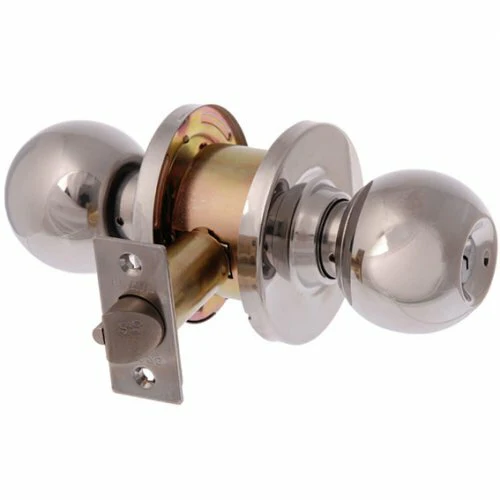

Brava Metro Glass Door Knob Set
EA3811PSS70
BRAVA Metro EA3000 series commercial grade 70mm backset glass door knobset.
Glass door function:
- Outside key locks and unlocks both knobs.
- Inside key locks and unlocks both knobs.
Additional info:
- Cylindrical fixing.
- Silca LW5 profile 6 pin cylinders.
- Incorporates the popular PD 8221 barrels.
- Compatible with most restricted keying systems.
- Boxed and colour coded.
- 2 keys supplied.
- Fire rated.
- Finished in polished stainless steel.
Features:
- Door thickness: 35-45mm
- Backset: 70mm
- Max. knob projection: 69.5mm (distance may not include turnsnib)
- Strike: 70mm x 27mm x 1.2mm
- Latch: 70mm backset
- Latch face plate: 57mm x 25mm
- Cylinder: LW5 profile
- Door handing: Non-handed knobs
- Rose: 75mm
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
